Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  2. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  4. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR SIDE SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  6. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  7. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 17 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 17 [11/2017 - ]

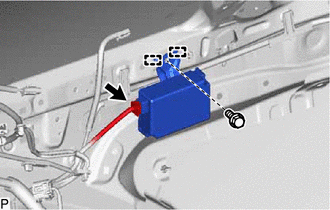

  8. REMOVE DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY
    1. Disconnect the connector.
      GTY521216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the 2 guides to remove the door control and tire pressure monitoring system receiver assembly.
