Components [11/2017 - ]

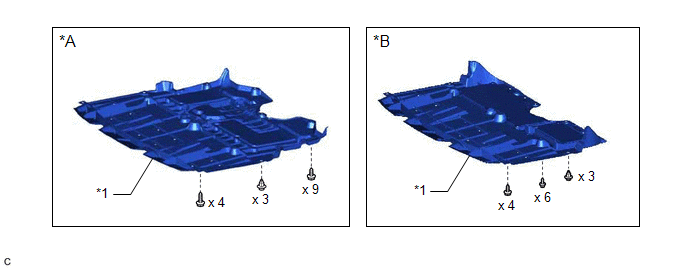

Fig 1: Generator Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	*B	for AWD
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-

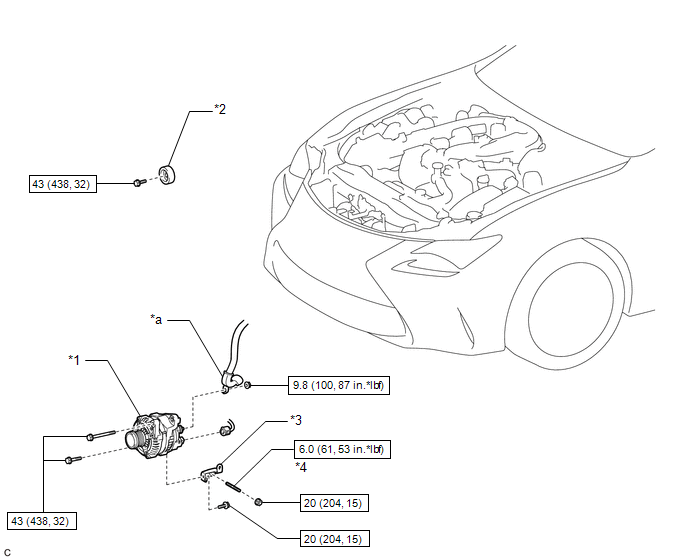

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 IDLER PULLEY SUB-ASSEMBLY	*2	GENERATOR ASSEMBLY
*3	GENERATOR BRACKET	*4	STUD BOLT
*a	TERMINAL CAP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

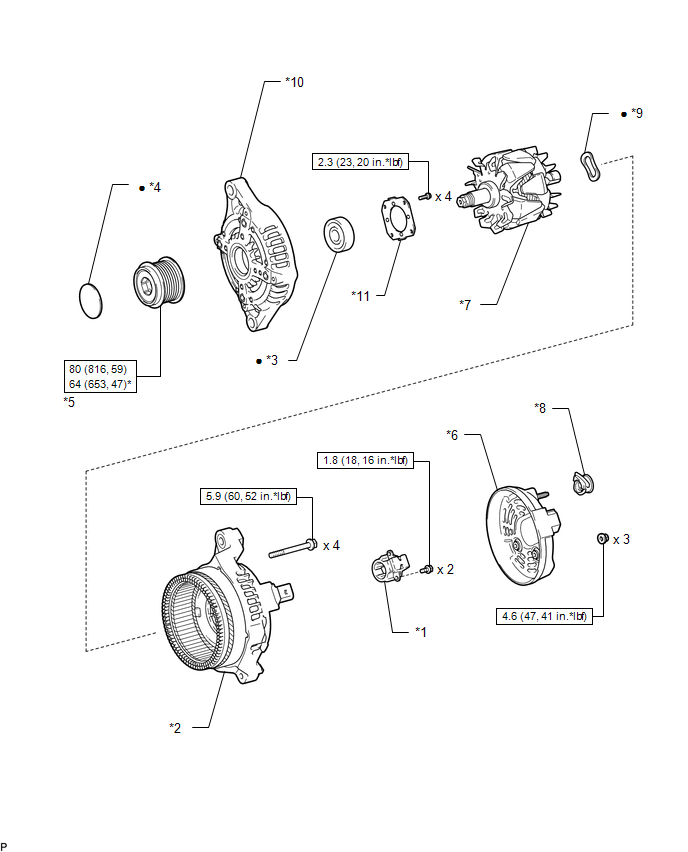

Fig 3: Generator Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	GENERATOR BRUSH HOLDER ASSEMBLY	*2	GENERATOR COIL ASSEMBLY
*3	GENERATOR DRIVE END FRAME BEARING	*4	GENERATOR PULLEY CAP
*5	GENERATOR PULLEY WITH CLUTCH	*6	GENERATOR REAR END COVER
*7	GENERATOR ROTOR ASSEMBLY	*8	GENERATOR TERMINAL INSULATOR
*9	WASHER	*10	GENERATOR DRIVE END FRAME
*11	RETAINER PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-
