Installation [10/2014 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the fuel injector assembly.

Refer to INITIALIZATION [10/2014 - ]

1. Apply a light coat of gasoline or spindle oil to a new O-ring, then install it to the fuel injector assembly.
2. Apply a small amount of gasoline or spindle oil to the fuel injector assembly installation hole of the fuel delivery pipe.

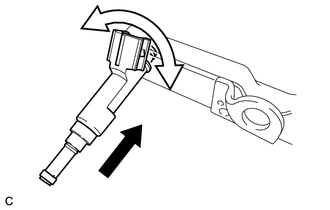

3. Insert the fuel delivery pipe while rotating the fuel injector assembly left and right.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage the fuel injector assembly and O-ring.
   • Be careful not to twist the O-ring.
   • After installation, check that the fuel injector assembly rotates smoothly. If it does not rotate smoothly, replace the O-ring with a new one and perform the installation again.

1. Install 4 new injector vibration insulators to the cylinder head.

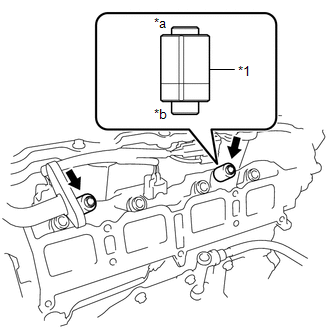

1. Install the 2 fuel delivery pipe spacers onto the cylinder head as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Delivery Pipe Spacer
   *a	Fuel Delivery Pipe Side
   *b	Cylinder Head Side

   NOTE:

   Install the parts in the correct direction.

2. Install the fuel delivery pipe together with the fuel injector assembly to the cylinder head.
   NOTE:

   Do not drop the fuel injector assembly when installing the fuel delivery pipe.

3. Temporarily install the fuel delivery pipe with the 2 bolts.
4. Turn the fuel injector assembly by hand and make sure that it is securely installed.

   HINT:

   If the fuel injector assembly does not rotate smoothly, replace the O-ring with a new one and perform the installation again.

5. Tighten the 2 bolts to install the fuel delivery pipe.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

6. Connect the 4 fuel injector assembly connectors.

1. Connect the fuel tube sub-assembly to the fuel pipe.

   Refer to PRECAUTION [10/2014 - 05/2019] Refer to PRECAUTION [05/2019 - ]

2. Install the No. 1 fuel pipe clamp to the fuel tube sub-assembly.

   Refer to PRECAUTION [10/2014 - 05/2019] Refer to PRECAUTION [05/2019 - ]

Refer to INSTALLATION [10/2014 - 09/2015] Refer to INSTALLATION [09/2015 - 05/2019] Refer to INSTALLATION [05/2019 - ]
