Components [10/2014 - ]

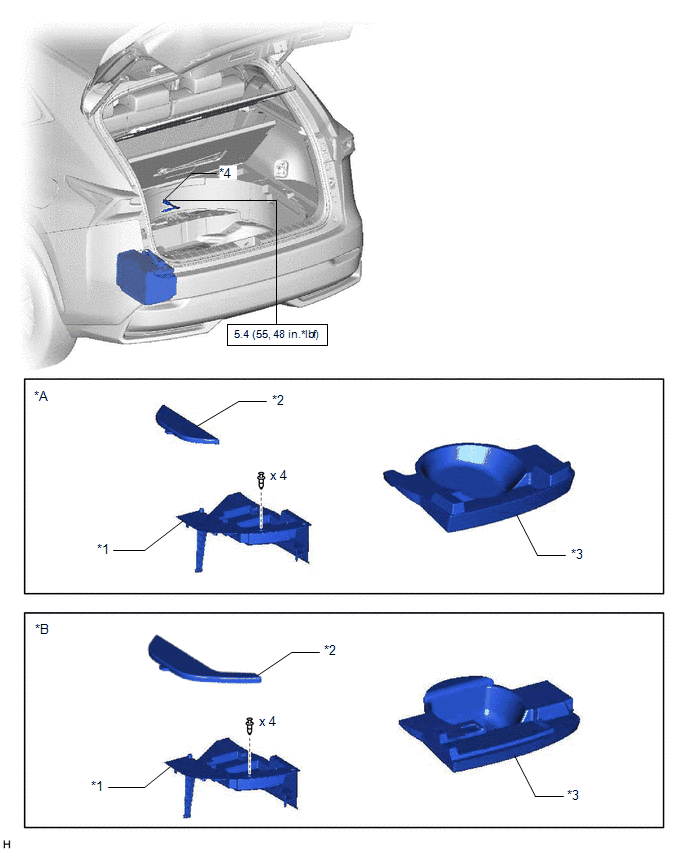

| Callout | Description | Callout | Description |
| *A | for Compact Spare Tire | *B | for Full Size Spare Tire |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

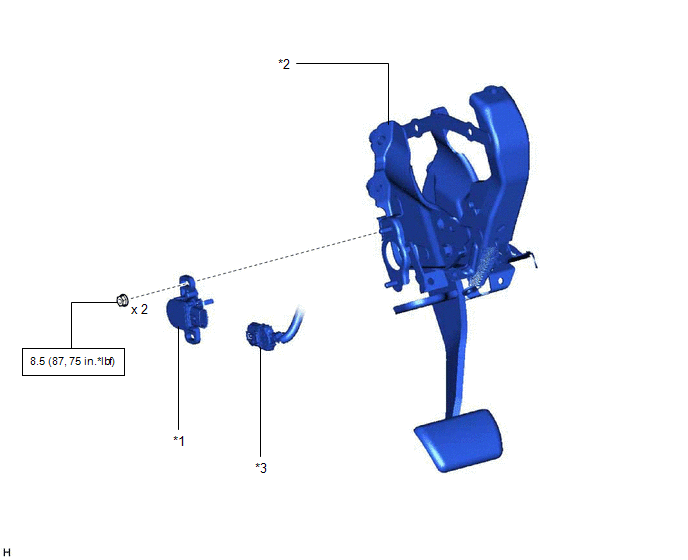

| Callout | Description | Callout | Description |
| *1 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *2 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *3 | CONNECTOR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
