Components [10/2014 - ]

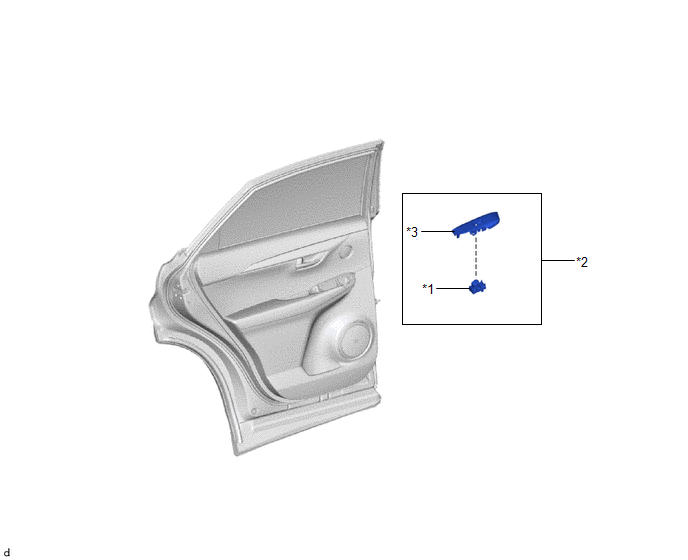

Fig 1: Rear Power Window Switch Replacement Components
GTY497573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY *2 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
*3 REAR DOOR ARMREST BASE PANEL - -
