  1. INSTALL AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR)

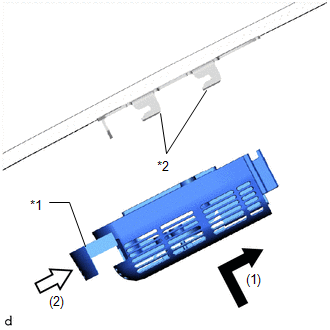

    GTY505360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Stopper
    *2 Bracket
    1. Attach the 2 brackets, and carefully install the air conditioning thermistor assembly (humidity sensor) to the glass surface, preventing air bubbles from forming between the contact surfaces.
    2. Push in the stopper.
    3. Connect the connector.
  2. INSTALL PROTECTOR
    1. Attach the 2 claws to install the protector.
