Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY

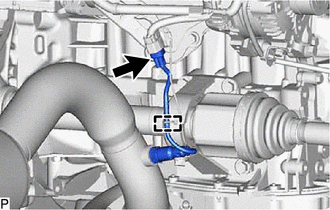

    1. Disconnect the heated oxygen sensor connector.
      GTY501351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the wire harness clamp to disconnect the wire harness from the wire harness clamp bracket.
    3. Remove the 4 bolts, 2 nuts and front No. 2 exhaust pipe sub-assembly.
      GTY501672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the front exhaust pipe sub-assembly.
    5. Remove the gasket from the front No. 2 exhaust pipe sub-assembly.
  2. REMOVE HEATED OXYGEN SENSOR

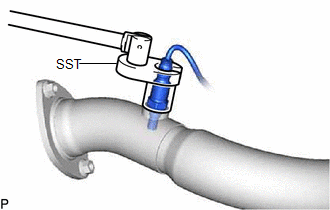

    1. Using SST, remove the heated oxygen sensor.
      GTY508446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
