Installation [10/2014 - 05/2019]: Procedure
- INSTALL NO. 5 FUEL TUBE CLAMP
- Install the No. 5 fuel tube clamp to the fuel tank assembly.
- INSTALL NO. 4 FUEL TUBE CLAMP
- Install the 3 No. 4 fuel tube clamps to the fuel tank assembly.
- INSTALL NO. 3 FUEL TUBE CLAMP
- Install the No. 3 fuel tube clamp to the fuel tank assembly.
- INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Connect the 5 clamps and install the fuel tank main tube sub-assembly to the No. 3 fuel tube clamp, 3 No. 4 fuel tube clamps and No. 5 fuel tube clamp.
- INSTALL FUEL TANK BREATHER TUBE SUB-ASSEMBLY
- Attach the clamp and install the fuel tank breather tube sub-assembly to the fuel tank assembly.
Refer to PRECAUTION [10/2014 - 05/2019]
- Attach the clamp and install the fuel tank breather tube sub-assembly to the fuel tank assembly.
- INSTALL FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY
- Install the fuel tank to canister tube sub-assembly to the fuel tank assembly.
Refer to PRECAUTION [10/2014 - 05/2019]
- Install the fuel tank to canister tube sub-assembly to the fuel tank assembly.
- INSTALL FUEL SENDER GAUGE ASSEMBLY
See step 1
- INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP
See step 1
- INSTALL FUEL TANK VENT TUBE SET PLATE
See step 2
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
See step 3
- INSTALL FUEL TANK ASSEMBLY
- Set the fuel tank assembly on an engine lifter with attachments.
- Raise the engine lifter.NOTE:
Be careful not to cut the fuel gauge wire.
- Attach the 3 clamps to No. 3 fuel tube clamp, No. 4 fuel tube clamp and No. 5 fuel tube clamp and connect the fuel gauge wire to the fuel tank assembly.
- Connect the 2 connectors to the fuel sender gauge assembly and fuel suction tube assembly with pump.
- Install the 2 No. 2 fuel tank band sub-assemblies with the 4 bolts.
Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)
- Install the No. 1 fuel tank band sub-assembly with the 2 bolts.
Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)
- Connect the 3 clamps to the 2 No. 4 fuel tube clamps and the bracket on the vehicle side.
- CONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY
- Connect the fuel tank breather tube sub-assembly to the fuel tank filler pipe sub-assembly.
Refer to PRECAUTION [10/2014 - 05/2019]
- Connect the fuel tank breather tube sub-assembly to the fuel tank filler pipe sub-assembly.
- CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
- Attach the clamp and connect the fuel tank vent hose sub-assembly to the No. 2 fuel tank band sub-assembly.

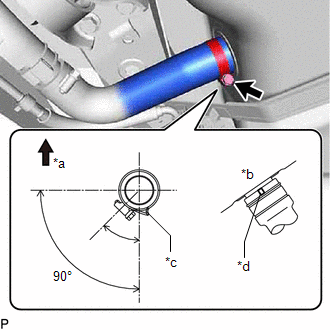

- CONNECT FUEL TANK TO FILLER PIPE HOSE
- INSTALL FUEL HOSE PROTECTOR
- Attach the claw, then install the fuel hose protector to the fuel tank to filler pipe hose.
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Connect the 2 fuel tank main tube sub-assemblies to the 2 fuel pipes.
Refer to PRECAUTION [10/2014 - 05/2019]
- Connect the 2 fuel tank main tube sub-assemblies to the 2 fuel pipes.
- CONNECT FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY
- Connect the fuel tank to canister tube sub-assembly to the charcoal canister assembly.
- Attach the 3 clamps and connect the fuel gauge wire.
- Connect the connector to the charcoal canister assembly.
- INSTALL NO. 2 FLOOR UNDER COVER
- Attach the clip and install the No. 2 floor under cover with the 2 nuts.
- INSTALL FRONT FLOOR COVER CENTER LH
- Install the front floor cover center LH with the bolt, 2 nuts and 6 clips.
- Tighten the nut.
- ADD FUEL
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2014 - 09/2017] , or refer to INITIALIZATION [09/2017 - 05/2019]
- INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 1 [09/2015 - 05/2019]
