Installation [10/2014 - ]: Procedure

1. Install a new gasket onto the fuel suction tube assembly with pump.
2. Connect the fuel hose to the fuel suction tube assembly with pump, and slide the clamp to secure the hose.
3. Install the fuel suction tube assembly with pump to the fuel tank assembly.
   NOTE:

   Be careful not to damage the fuel suction tube assembly with pump.

1. Install the No. 1 fuel tube clamp and fuel tank vent tube set plate with the 8 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

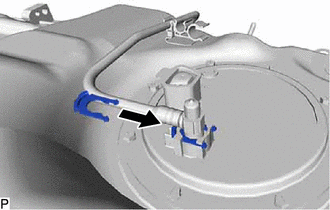

1. Connect the fuel tank main tube sub-assembly to the fuel suction plate sub-assembly, then install the tube joint clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

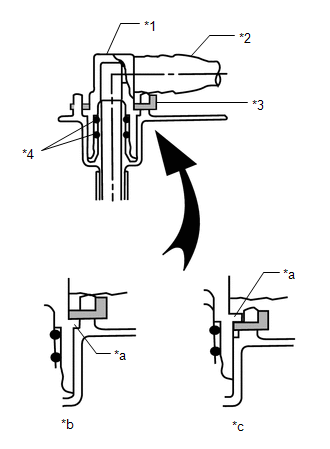

   *1	Fuel Tube Joint
   *2	Fuel Tank Main Tube Sub-assembly
   *3	Tube Joint Clip
   *4	O-Ring
   *a	Collar
   *b	CORRECT
   *c	INCORRECT

   • Check that there are no scratches or foreign objects on the connecting parts.
   • Check that the fuel tube joint is inserted securely.
   • Make sure that the fuel joint clip is above the flange of the fuel tank main tube sub-assembly.
   • After installing the tube joint clip, make sure that the fuel tank main tube sub-assembly cannot be pulled out.
   • Be careful not to damage the tube joint clip. If the tube joint clip is damaged, replace it.

Refer to INSTALLATION [10/2014 - 05/2019] , or refer to INSTALLATION [05/2019 - ]
