Disassembly [10/2014 - ]: Procedure

  1. REMOVE NO. 1 FUEL SUB-TANK

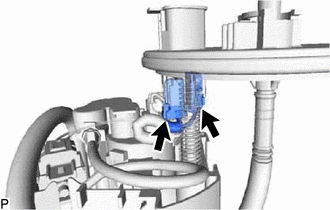

    1. Disconnect the 2 connectors from the fuel suction plate sub-assembly.
      GTY516494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

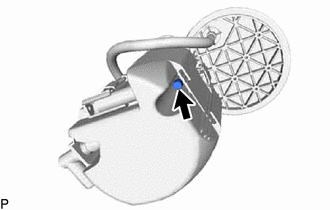

    2. Remove the setting holder from the fuel suction plate sub-assembly.

      HINT:

      Slightly lower the fuel suction plate sub-assembly to remove the setting holder.

      GTY516612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

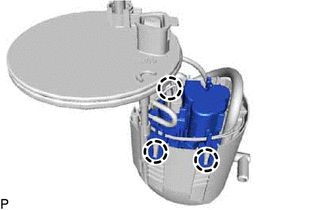

    3. Detach the 3 claws.
      GTY516613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

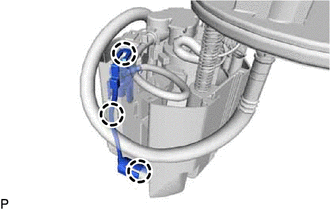

    4. Detach the 3 claws and disconnect the jet pump from the No. 1 fuel sub-tank.
      GTY521701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

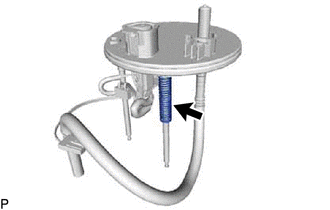

    5. Remove the spring from the fuel suction plate sub-assembly.
      GTY516614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

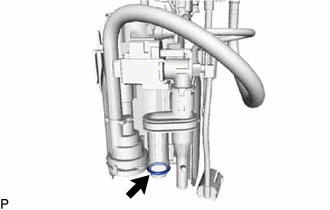

    6. Remove the O-ring from the jet pump.
      GTY516617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FUEL MAIN VALVE ASSEMBLY

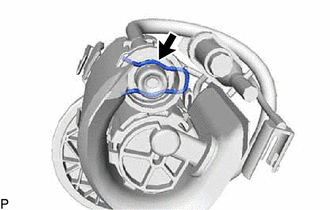

    1. Remove the No. 2 fuel suction support from the fuel suction plate sub-assembly.
      GTY516505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

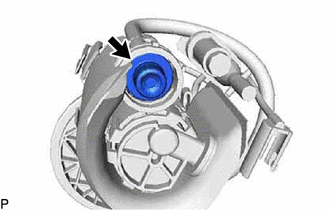

    2. Using a screwdriver, remove the fuel main valve assembly from the fuel suction plate sub-assembly.
      GTY516504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the fuel suction plate sub-assembly.

    3. Remove the 2 O-rings from the fuel main valve assembly.
  3. REMOVE FUEL PUMP

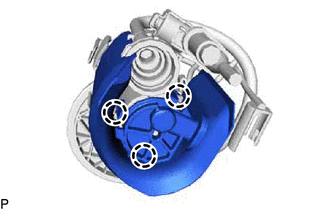

    1. Detach the 3 claws and remove the fuel pump filter.
      GTY516507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the fuel pump.
      GTY503559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

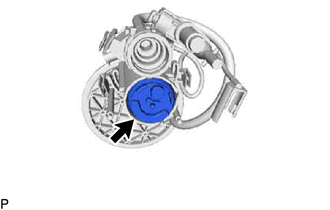

    3. Remove the fuel pump from the fuel suction plate sub-assembly.
      GTY516506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

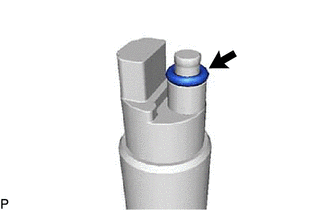

    4. Remove the O-ring from the fuel pump.
      GTY513916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

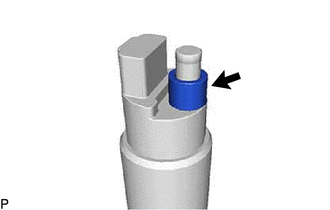

    5. Remove the fuel pump spacer from the fuel pump.
      GTY513917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
