Components [10/2014 - ]

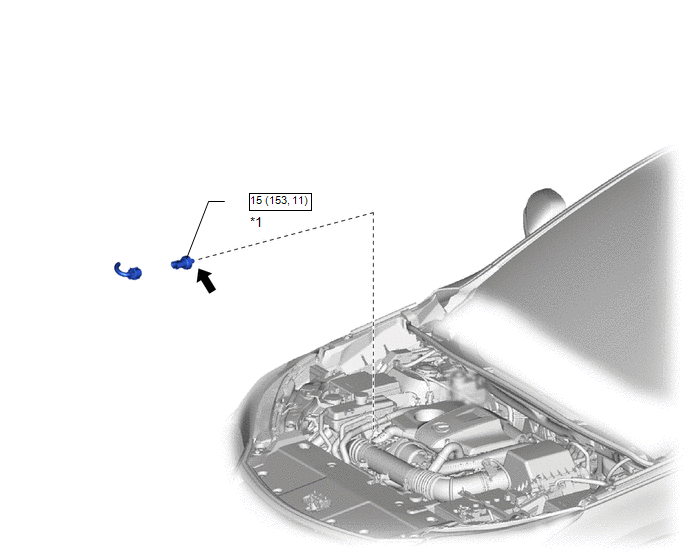

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications
GTY507483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PRESSURE SENDER GAUGE ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque TOYOTA Genuine Adhesive 1344, Three Bond 1344 or equivalent.
* Precoated part - -
