Removal [10/2014 - ]: Procedure

  1. DRAIN ENGINE OIL

    See step   [10/2014 - 05/2018] , or see step   [05/2018 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for Sport Package)

    Refer to PROCEDURE - Step 6 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6

  3. REMOVE NO. 1 ENGINE UNDER COVER (except Sport Package)

    Refer to PROCEDURE - Step 7 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 7 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

  4. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

    Refer to PROCEDURE - Step 71 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 71 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 71 [05/2019 - ]

  5. REMOVE FRONT EXHAUST PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 5 [09/2017 - ]

  6. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 61 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 63 [09/2015 - ]

  7. REMOVE ENGINE OIL LEVEL SENSOR

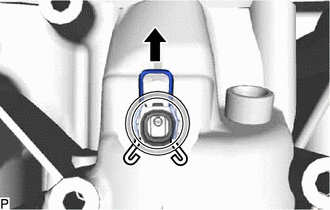

    1. Remove the clip from the engine oil level sensor.
      GTY505318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

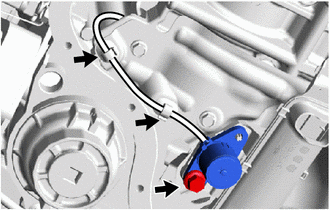

    2. Detach the 2 clamps from the No. 1 oil pan baffle plate.
      GTY505316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and engine oil level sensor.
