Inspection [10/2014 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.

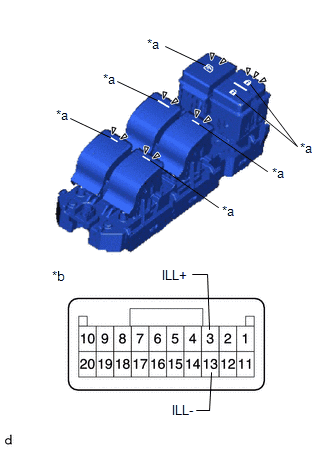

*a LED Illumination *b Component without harness connected
(Multiplex Network Master Switch Assembly)- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 3 (ILL+)
Battery negative (-) → 13 (ILL-)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
