DTC B2311: Power Window Motor Malfunction [10/2014 - ]: Procedure
- CHECK FOR DTC
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [10/2014 - ]
Body Electrical > D-Door Motor > Clear DTCs
Body Electrical > P-Door Motor > Clear DTCs
Body Electrical > RL-Door Motor > Clear DTCs
Body Electrical > RR-Door Motor > Clear DTCs
- Check for DTCs.
Refer to DTC CHECK / CLEAR [10/2014 - ]
Body Electrical > D-Door Motor > Trouble Codes
Body Electrical > P-Door Motor > Trouble Codes
Body Electrical > RL-Door Motor > Trouble Codes
Body Electrical > RR-Door Motor > Trouble Codes
OK
DTC B2311 is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 09/2017] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2017 - 05/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [05/2019 - 10/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2019 - 07/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2020 - ]
Result:
NG
See step 2
- Clear the DTCs.
- CHECK FOR DTC
- Check the parts which the DTCs have been output from.
Result
Result Proceed to DTC output from D-Door Motor A DTC output from P-Door Motor B DTC output from RL-Door Motor C DTC output from RR-Door Motor D
Result:
B
See step 4
Result:
C
See step 5
Result:
D
See step 6
Result:
A
See step 3
- Check the parts which the DTCs have been output from.

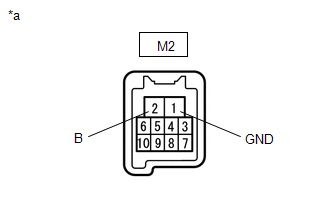

- CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH - BATTERY AND BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M2-1 (GND) - Body ground Always Below 1 Ω *a Component with harness connected
(Front Power Window Regulator Motor Assembly LH) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition M2-2 (B) - M2-1 (GND) Always 11 to 14 V Result
Proceed to OK NG
Result:
OK
See step 7
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH - BATTERY AND BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L2-1 (GND) - Body ground Always Below 1 Ω *a Component with harness connected
(Front Power Window Regulator Motor Assembly RH) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition L2-2 (B) - L2-1 (GND) Always 11 to 14 V Result
Proceed to OK NG
Result:
OK
See step 7
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.

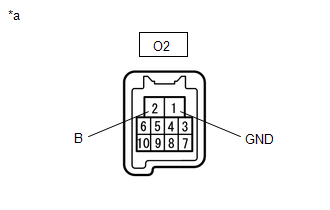

- CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH - BATTERY AND BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O2-1 (GND) - Body ground Always Below 1 Ω *a Component with harness connected
(Rear Power Window Regulator Motor Assembly LH) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition O2-2 (B) - O2-1 (GND) Always 11 to 14 V Result
Proceed to OK NG
Result:
OK
See step 7
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH - BATTERY AND BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N2-1 (GND) - Body ground Always Below 1 Ω *a Component with harness connected
(Rear Power Window Regulator Motor Assembly RH) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition N2-2 (B) - N2-1 (GND) Always 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Measure the resistance according to the value(s) in the table below.
- PERFORM ACTIVE TEST USING TECHSTREAM (APPLICABLE LOCATION)
- Perform the Active Test according to the display on the Techstream.
Refer to DATA LIST / ACTIVE TEST [10/2014 - ]
WARNING:Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.
HINT:
Up and down movement does not occur if the arrow is not pressed and held.
Body Electrical > D-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Power Window Power window OFF / DOWN / UP - Body Electrical > P-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Power Window Power window OFF / DOWN / UP - Body Electrical > RL-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Power Window Power window OFF / DOWN / UP - Body Electrical > RR-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Power Window Power window OFF / DOWN / UP - Body Electrical > D-Door Motor > Active Test
Tester Display Power Window Body Electrical > P-Door Motor > Active Test
Tester Display Power Window Body Electrical > RL-Door Motor > Active Test
Tester Display Power Window Body Electrical > RR-Door Motor > Active Test
Tester Display Power Window OK
Each power window motor operates.
Result
Result Proceed to OK A NG (D-Door Motor) B NG (P-Door Motor) C NG (RL-Door Motor) D NG (RR-Door Motor) E
Result:
B
REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
C
REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
D
REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
E
REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
A
See step 8
- Perform the Active Test according to the display on the Techstream.
- PERFORM INITIALIZATION (APPLICABLE LOCATION)
- Initialize the power window regulator motor assembly.
Refer to INITIALIZATION [10/2014 - ]
HINT:
Initialize the power window regulator motor assembly that has DTC B2311 stored in its ECU.
Result
Proceed to NEXT
Result:
NEXT
See step 9
- Initialize the power window regulator motor assembly.
- CHECK POWER WINDOW CONTROL SYSTEM (APPLICABLE LOCATION)
- Check that the power window operates normally by opening and closing the window.
Refer to OPERATION CHECK [10/2014 - ]
HINT:
Check the power window operation of the window for which DTC B2311 has been stored.
OK
Each power window operates normally.
Result
Result Proceed to OK A NG (D-Door Motor) B NG (P-Door Motor) C NG (RL-Door Motor) D NG (RR-Door Motor) E
Result:
B
REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
C
REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
D
REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
E
REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
A
See step 10
- Check that the power window operates normally by opening and closing the window.
- CHECK WHETHER PARTS HAVE BEEN INSTALLED CORRECTLY
- Check that the power window components are installed correctly.
OK
Power window components are installed correctly.
Result
Proceed to OK NG
Result:
OK
END (OVERHEATED POWER WINDOW REGULATOR MOTOR WAS DEFECTIVE)
Result:
NG
INSTALL PARTS CORRECTLY
- Check that the power window components are installed correctly.
