Components [09/2017 - ]

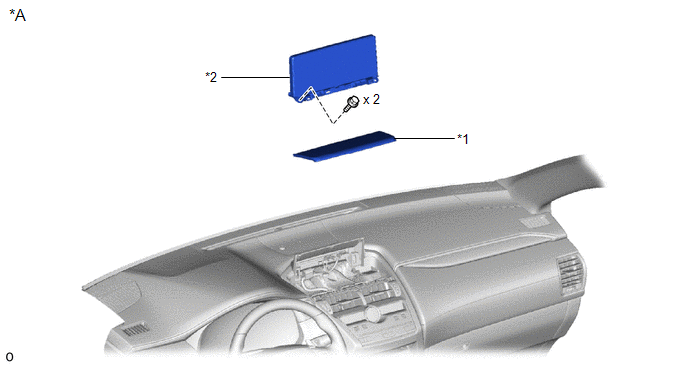

Fig 1: Multi-Display Replacement Components (1 Of 4) [09/2017 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 8 Inch	-	-
*1	INSTRUMENT PANEL FINISH PLATE	*2	MULTI-DISPLAY ASSEMBLY WITH BRACKET

Fig 2: Multi-Display Replacement Components (2 Of 4) [09/2017 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 10.3 Inch	-	-
*1	INSTRUMENT PANEL FINISH PLATE	*2	MULTI-DISPLAY ASSEMBLY WITH BRACKET

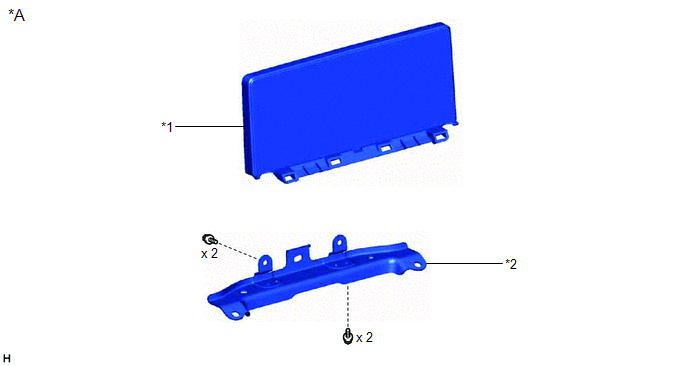

Fig 3: Multi-Display Replacement Components (3 Of 4) [09/2017 - ]

*A	for 8 Inch	-	-
*1	MULTI-DISPLAY ASSEMBLY	*2	MULTI-DISPLAY CONTROLLER BRACKET A

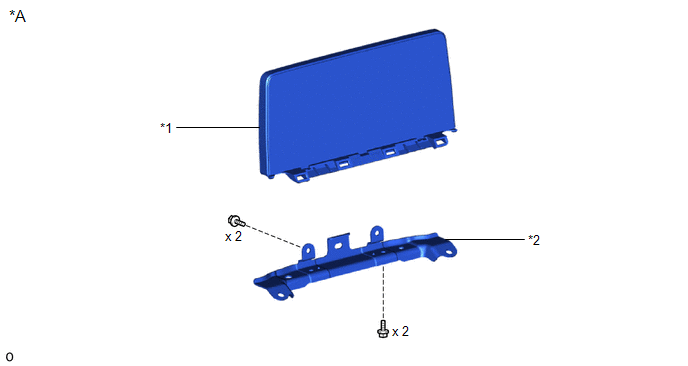

Fig 4: Multi-Display Replacement Components (4 Of 4) [09/2017 - ]

*A	for 10.3 Inch	-	-
*1	MULTI-DISPLAY ASSEMBLY	*2	MULTI-DISPLAY CONTROLLER BRACKET A
