Cruise Control System - Service Information
>>
Millimeter Wave Radar Sensor
>>
Components [09/2017 - 05/2019]
Components [09/2017 - 05/2019]

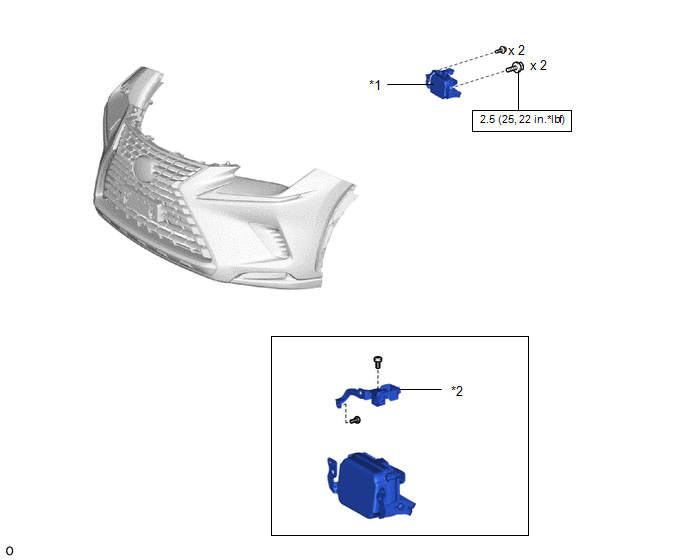

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*2
NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
