Lane Recognition Camera Sensor
>>
Components [10/2014 - 09/2017]
Components [10/2014 - 09/2017]

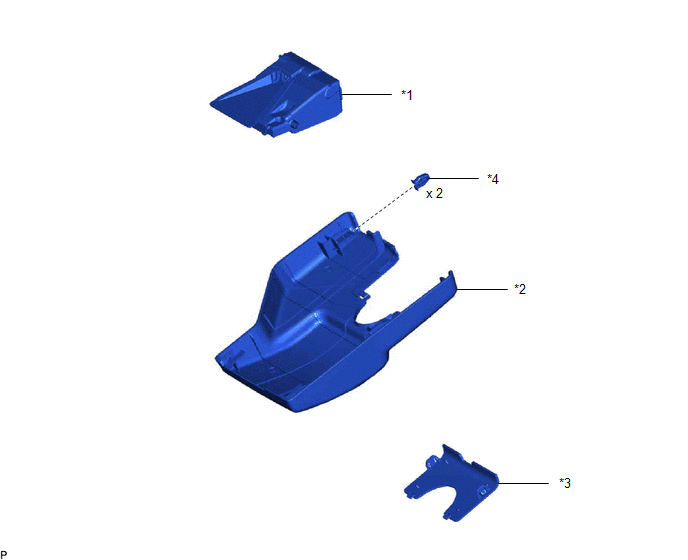

Fig 1: Lane Recognition Camera Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LANE DEPARTURE WARNING CAMERA
*2
NO. 1 LANE RECOGNITION COVER
*3
NO. 2 LANE RECOGNITION COVER
*4
CLIP
