Components [10/2014 - 09/2017]

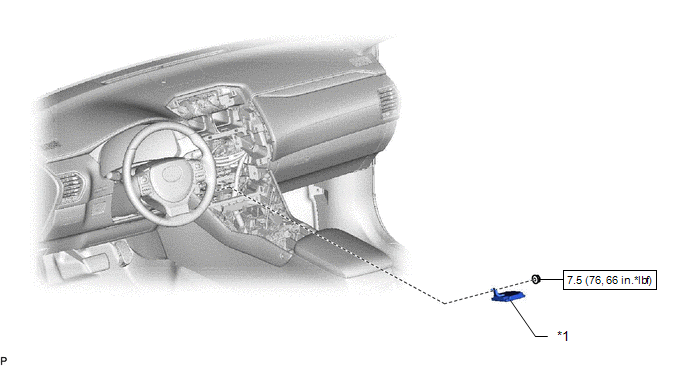

Fig 1: Driving Support ECU Replacement Components With Torque Specifications
GTY513095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVING SUPPORT ECU ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
