Components [09/2017 - 05/2019]

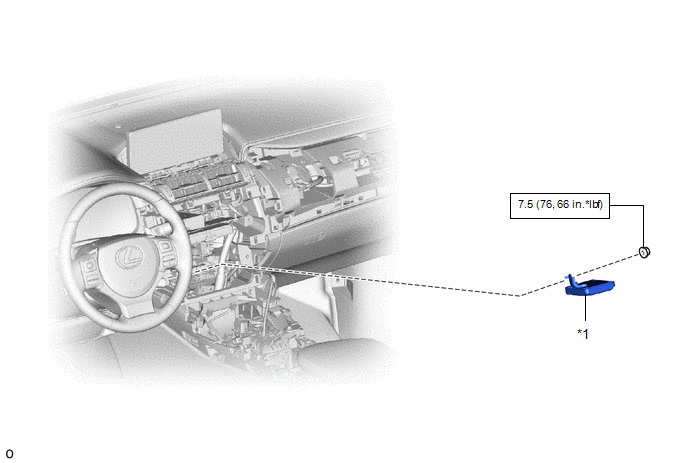

Fig 1: Driving Support ECU Replacement Components With Torque Specifications
GTY782859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVING SUPPORT ECU ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
