Removal [10/2014 - 09/2017]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [10/2014 - 05/2019]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

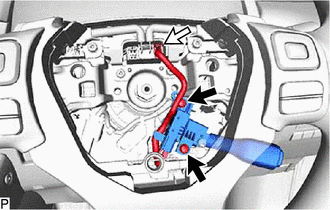

    1. Remove the 2 screws.
      GTY506494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the cruise control main switch.
    3. Disconnect the connector and remove the cruise control switch wire from the cruise control main switch.
      GTY370212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
