Inspection [10/2014 - 09/2017]: Procedure

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. w/o Dynamic Radar Cruise Control System:
      1. Measure the resistance according to the value(s) in the table below.
        GTY507012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Cruise Control Main Switch)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 (ECC) - 3 (CCS) Cruise control main switch (ON-OFF button) released 1 MΩ or higher
        Cruise control main switch (ON-OFF button) pushed Below 2.5 Ω
        +RES switch ON 236 to 244 Ω
        -SET switch ON 618 to 642 Ω
        CANCEL switch ON 1510 to 1570 Ω

        If the result is not as specified, replace the cruise control main switch.

    2. w/ Dynamic Radar Cruise Control System:
      1. Measure the resistance according to the value(s) in the table below.

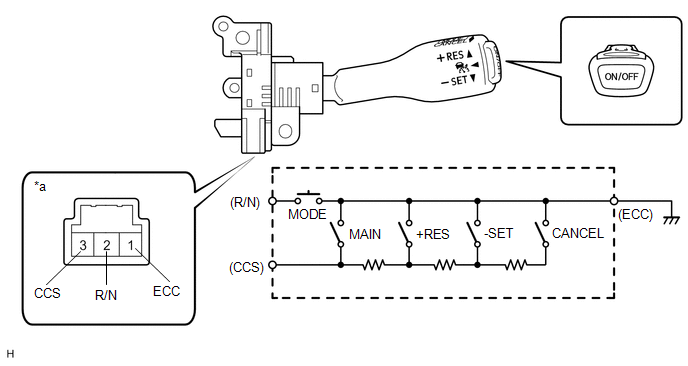

        GTY501745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Cruise Control Main Switch)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 (ECC) - 3 (CCS) Cruise control main switch (ON-OFF button) released 1 MΩ or higher
        Cruise control main switch (ON-OFF button) pushed Below 2.5 Ω
        +RES switch ON 236 to 244 Ω
        -SET switch ON 618 to 642 Ω
        CANCEL switch ON 1510 to 1570 Ω
        1 (ECC) - 2 (R/N) MODE switch ON Below 2.5 Ω

        If the result is not as specified, replace the cruise control main switch.
