Removal [09/2015 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  2. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 14

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  4. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 21

  6. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

    Refer to PROCEDURE - Step 22

  7. REMOVE SKID CONTROL BUZZER (PRE-COLLISION SYSTEM WARNING BUZZER)
    1. Using a clip remover, detach the clamp.

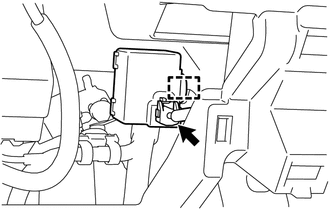

      GTY661675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the skid control buzzer (pre-collision system warning buzzer).
