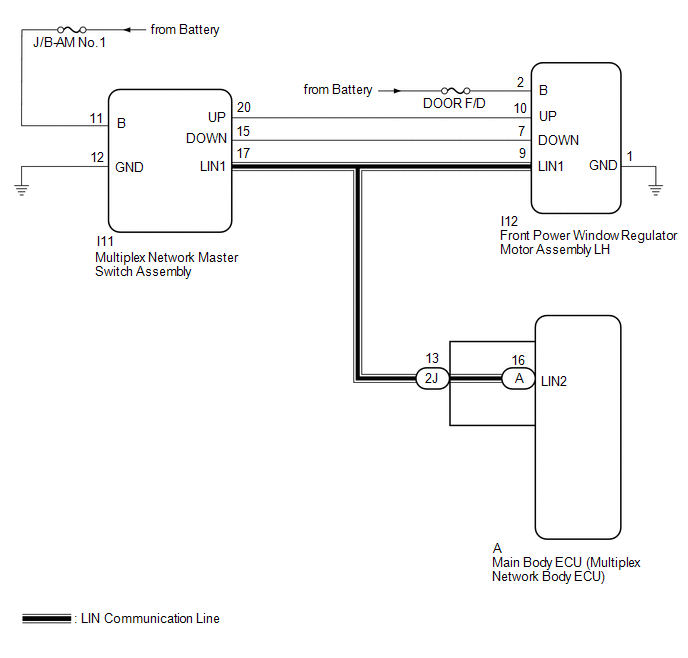

Driver Side Power Window does not Operate with Power Window Master Switch [09/2015 - ]: Wiring Diagram

GTY616718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
