Parts Location [09/2015 - ]: Illustration

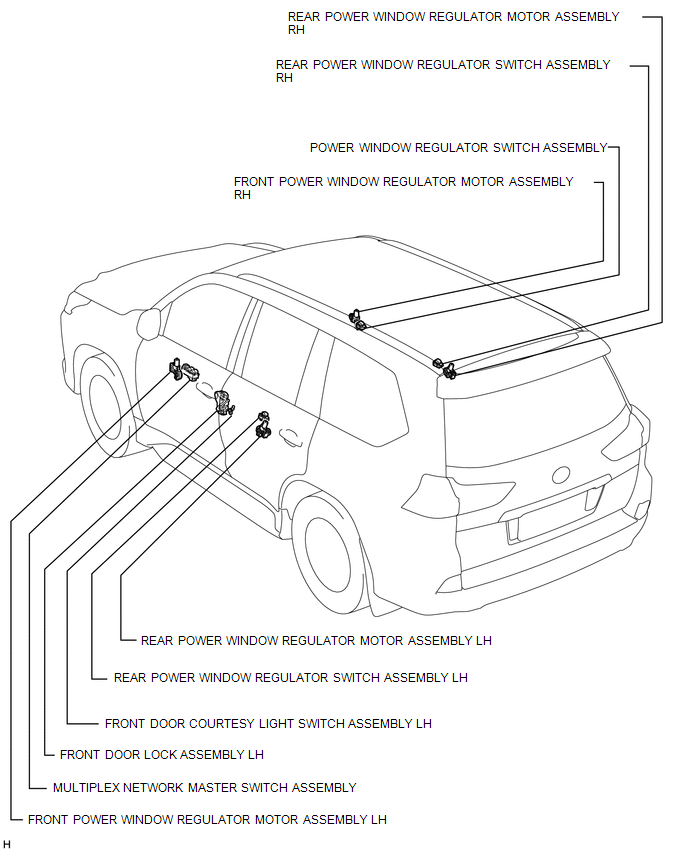

GTY637973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

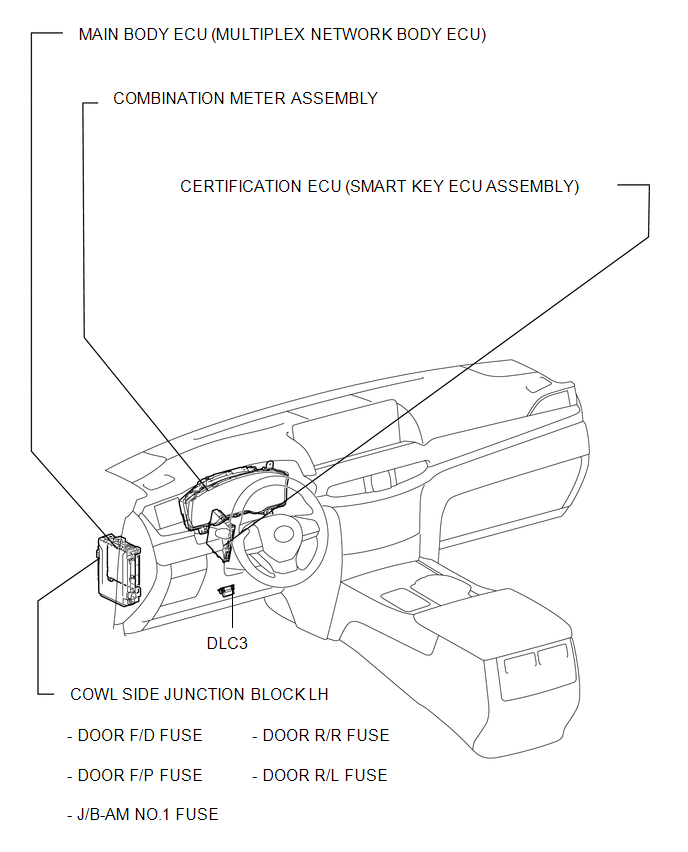

GTY638516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
