Inspection [09/2015 - ]: Procedure

  1. INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY
    1. for vehicles without vehicle-to-vehicle distance control mode:
      1. Measure the resistance according to the value(s) in the table below.

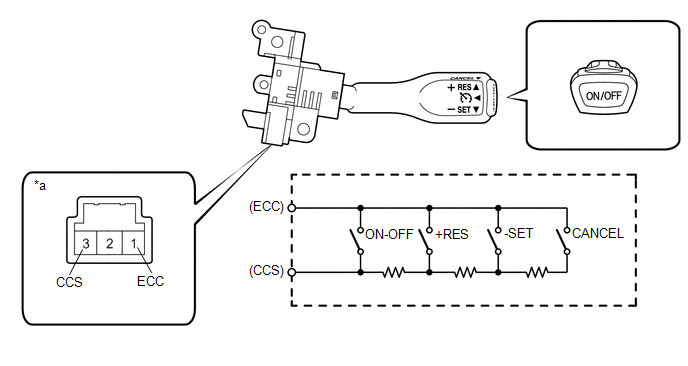

        GTY628319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component without harness connected (Cruise Control Main Switch) - -

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (ECC) - 3 (CCS) Cruise control switch (ON/OFF button) released 1 MΩ or higher
        Cruise control switch (ON/OFF button) pushed Below 2.5 Ω
        +RES 235 to 245 Ω
        -SET 617 to 643 Ω
        CANCEL 1509 to 1571 Ω
        1. If the result is not as specified, replace the cruise control main switch assembly.
    2. for vehicles with vehicle-to-vehicle distance control mode:
      1. Measure the resistance according to the value(s) in the table below.

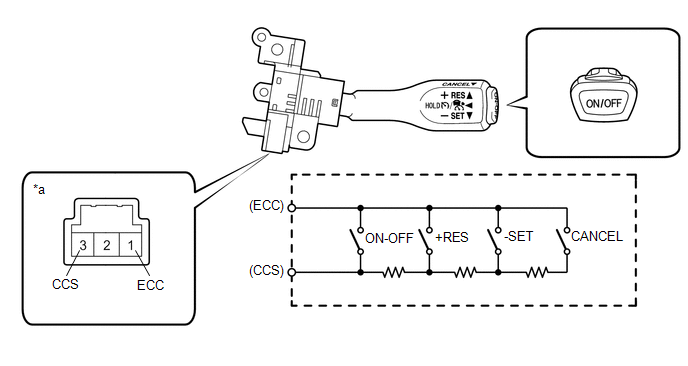

        GTY640187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component without harness connected (Cruise Control Main Switch) - -

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (ECC) - 3 (CCS) Cruise control switch (ON/OFF button) released 1 MΩ or higher
        Cruise control switch (ON/OFF button) pushed Below 2.5 Ω
        +RES 235 to 245 Ω
        -SET 617 to 643 Ω
        CANCEL 1509 to 1571 Ω
        1. If the result is not as specified, replace the cruise control main switch assembly.
