Installation [10/2023 - ]: Procedure

INSTALL FRONT SPEED SENSOR

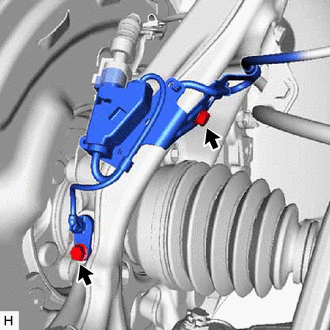

for LH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the sensor clamp with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

NOTE:
Do not twist the skid control sensor wire when installing it.
Install the speed sensor with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
NOTE:
- Prevent foreign matter from attaching to the front speed sensor tip.
- Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

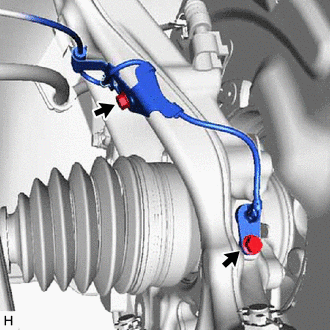

for RH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the sensor clamp with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

NOTE:
Do not twist the skid control sensor wire when installing it.
Connect the skid control sensor wire connector.
Torque: 8.5 N.m (87 kgf/cm, 6 ft.lbf)
NOTE:
- Prevent foreign matter from attaching to the front speed sensor tip.
- Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

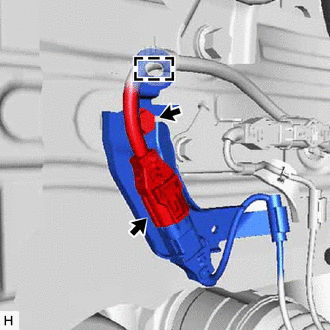

Connect the pad wear indicator connector.

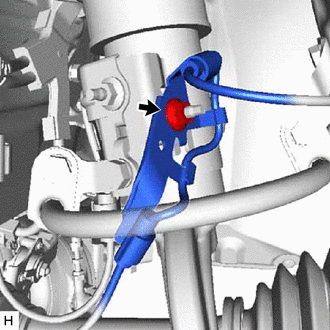

Install the sensor clamp with the nut.

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not twist the skid control sensor wire when installing it.

Install the sensor clamp with the bolt.

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

NOTE:

Do not twist the skid control sensor wire when installing it.

INSTALL FRONT WHEEL
Refer to INSTALLATION [10/2023 - ]
CHECK FOR SPEED SENSOR SIGNAL
1. w/ Front LiDAR Sensor:
  Refer to TEST MODE PROCEDURE [10/2023 - ]
2. w/o Front LiDAR Sensor:
  Refer to TEST MODE PROCEDURE [10/2023 - ]
