Components [10/2023 - ]

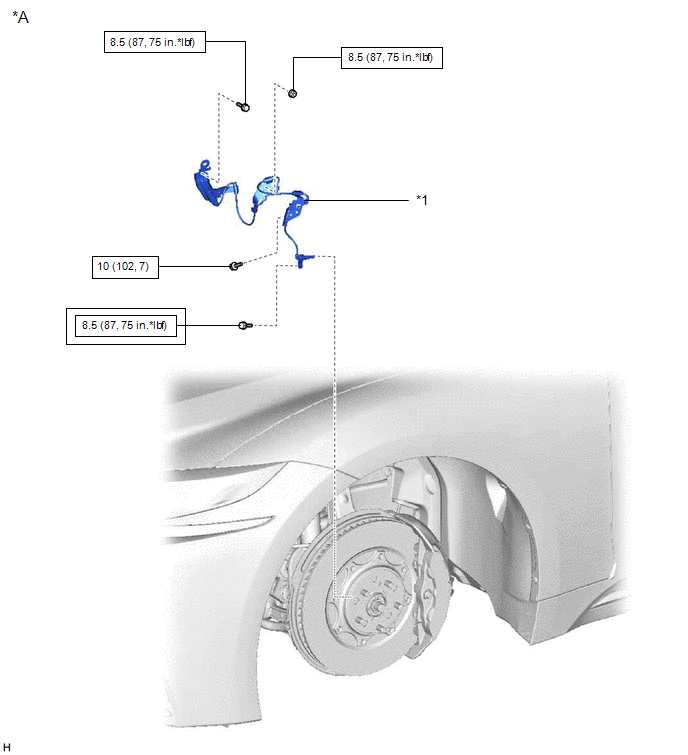

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for LH Side	-	-
*1	FRONT SPEED SENSOR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

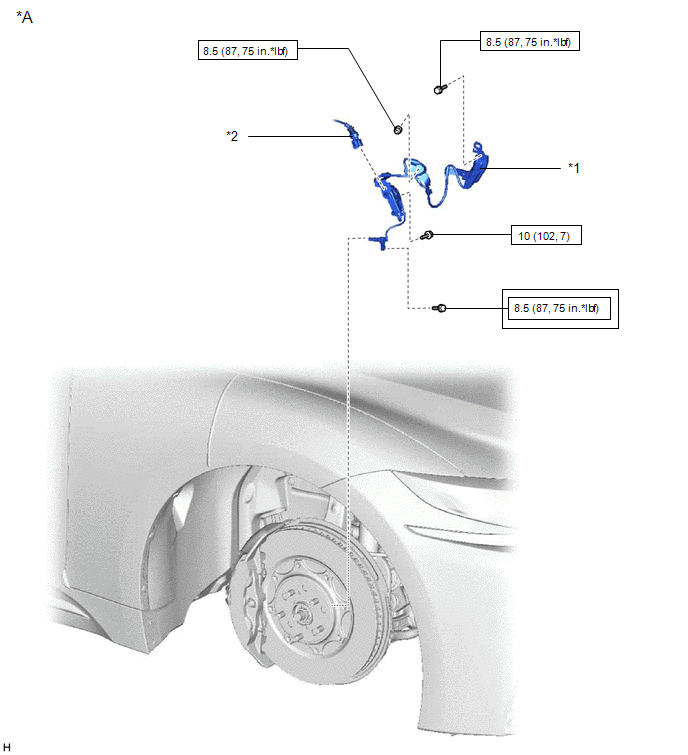

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*A	for RH Side	-	-
*1	FRONT SPEED SENSOR	-	PAD WEAR INDICATOR WIRE CONNECTOR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
