Installation [12/2017 - 10/2020]: Procedure

INSTALL REAR ACTIVE STABILIZER CONTROL ECU

Connect the rear active stabilizer control ECU connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

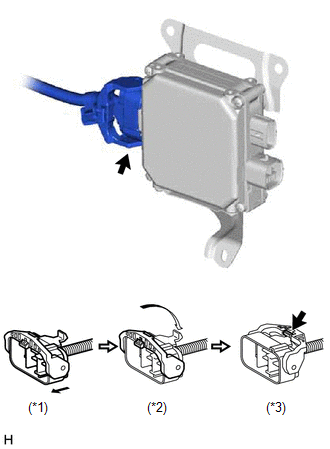

Connect the rear active stabilizer control ECU connector. (*1)
Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
Lock the lever's lock. (*3)

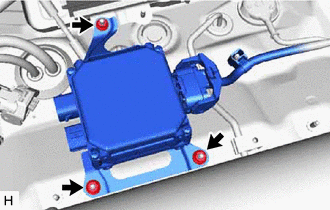

Install the rear active stabilizer control ECU with the 3 nuts.

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

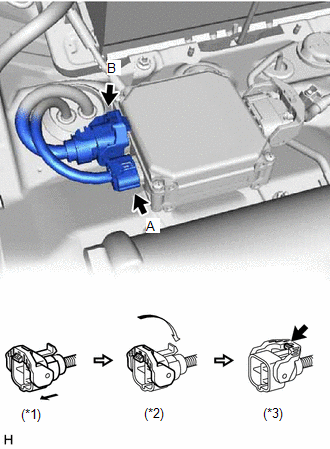

Connect the rear active stabilizer control actuator connector labeled A.

Connect the rear active stabilizer control actuator connector labeled B.
1. Connect the actuator connector. (*1)
2. Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
3. Lock the lever's lock. (*3)

INSTALL BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY
Refer to INSTALLATION [12/2017 - 10/2020]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [12/2017 - 10/2020]

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
