Reassembly [12/2017 - 09/2018]: Procedure

WARNING: This page is about a different car, the 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Stereo Camera Type)

Attach the guide.

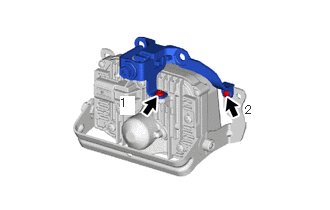

Fig 1: No. 1 Millimeter Wave Radar Sensor Bracket (For Stereo Camera Type) Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Guide
	Screw
	Bolt

Temporarily install the No. 1 millimeter wave radar sensor bracket with the 2 bolts and screw.
Tighten the 2 bolts and screw in the order shown in the illustration.
Bolt

Torque: 2.5 N.m (25 kgf/cm, 22 in.lbf)

INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Mono Camera Type)
NOTE:
If the No. 1 millimeter wave radar sensor bracket has been removed/installed, be sure to perform adjustment.

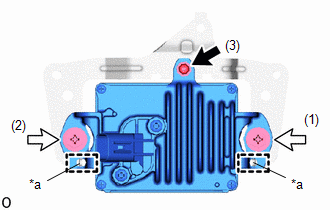

1. Fig 2: NO. 1 Millimeter Wave Radar Sensor Bracket (For Mono Camera Type) Screw Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Temporarily install the No. 1 millimeter wave radar sensor bracket with the 2 screws.
2. Tighten the 2 screws and in the order shown in the illustration.
