Disassembly [12/2017 - 09/2018]: Procedure

WARNING: This page is about a different car, the 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Stereo Camera Type)
    NOTE:

    Do not disassemble the No. 1 millimeter wave radar sensor bracket except when replacing it.

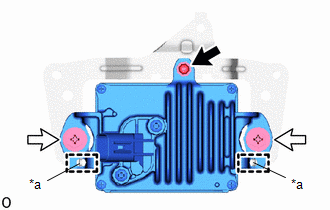

    1. Remove the 2 bolts and screw.
      GTY819306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      Screw
      Bolt
    2. Detach the guide and remove the No. 1 millimeter wave radar sensor bracket.
  2. REMOVE NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Mono Camera Type)
    NOTE:
    • Do not disassemble the No. 1 millimeter wave radar sensor bracket except when replacing it.
    • If the beam axis change mechanism is damaged or the No. 1 millimeter wave radar sensor bracket is deformed, replace it.

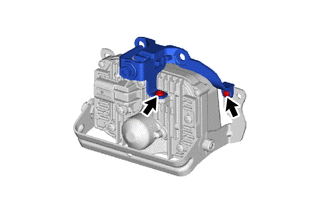

    1. Remove the 2 screws and No. 1 millimeter wave radar sensor bracket.
      GTY794795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
