Components [12/2017 - 09/2018]
WARNING: This page is about a different car, the 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

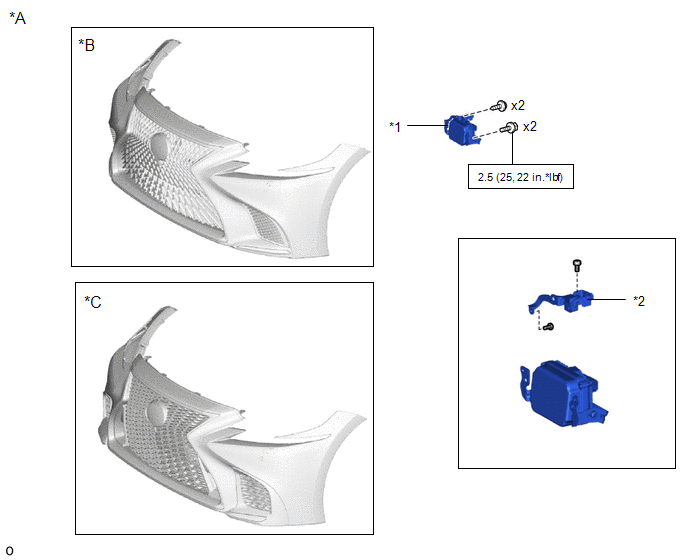

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [12/2017 - 09/2018] (1 Of 2)
| *A | for Stereo Camera Type | *B | for except Sport Package |
| *C | for Sport Package | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

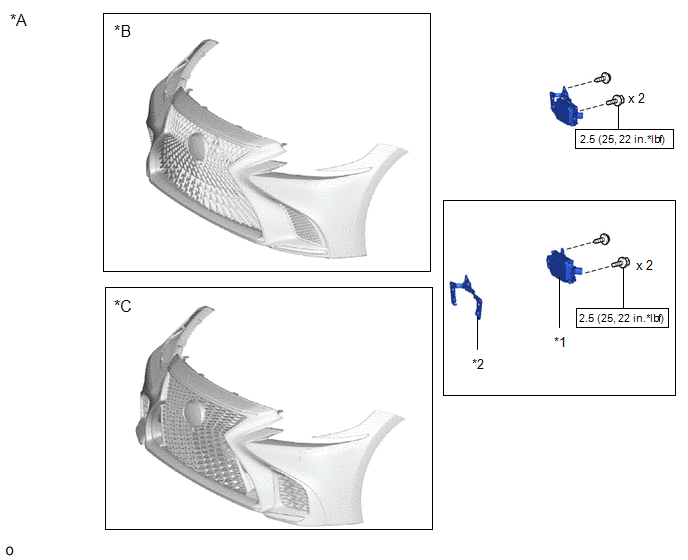

Fig 2: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [12/2017 - 09/2018] (2 Of 2)
| *A | for Mono Camera Type | *B | for except Sport Package |
| *C | for Sport Package | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
