Components [10/2020 - ]

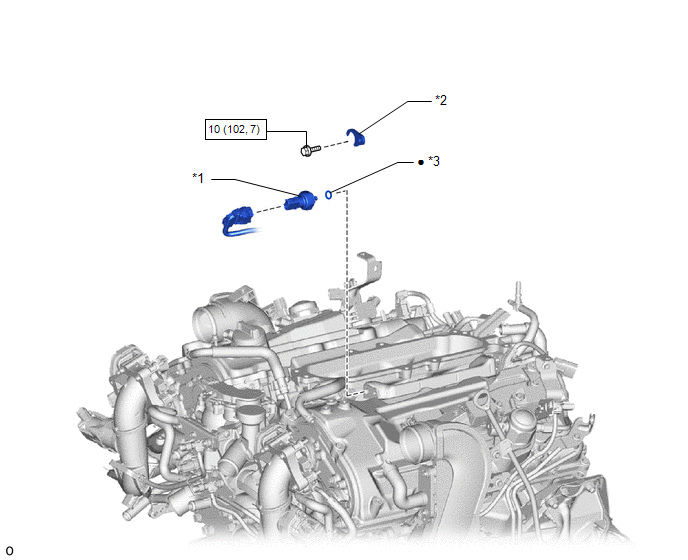

Fig 1: Fuel Pressure Sensor Replacement Components With Torque Specifications [10/2020 - ]
GTY964973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 FUEL PRESSURE SENSOR *2 NO. 2 FUEL PRESSURE SENSOR HOLDER
*3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
