Components [12/2017 - ]

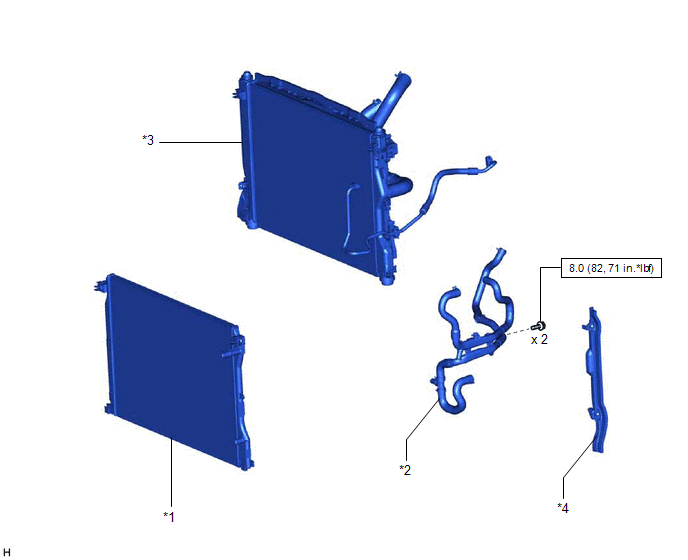

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INTERCOOLER COOLING RADIATOR ASSEMBLY	*2	INTERCOOLER COOLING WATER HOSE ASSEMBLY
*3	RADIATOR ASSEMBLY	*4	REAR RADIATOR SIDE AIR GUIDE PLATE LH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

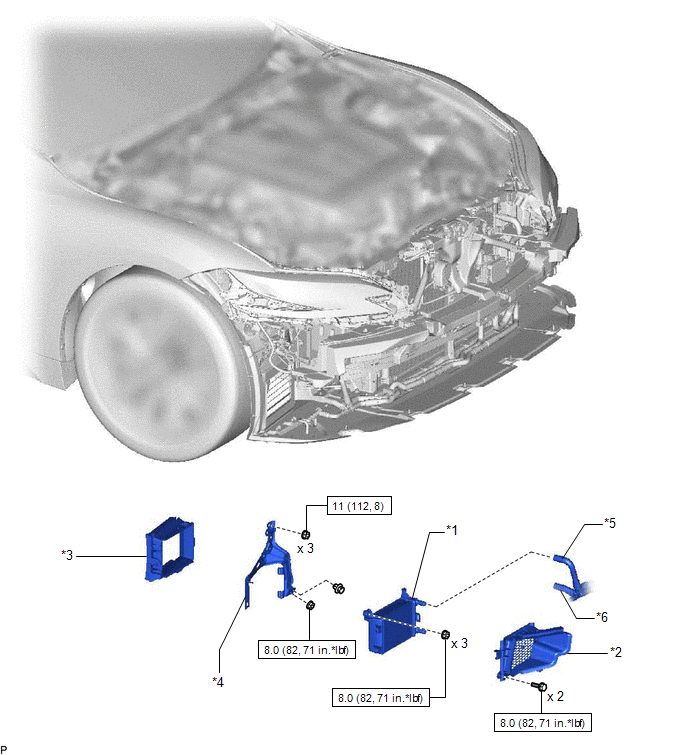

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)

*1	SUB RADIATOR ASSEMBLY	*2	NO. 1 SUB-RADIATOR DUCT
*3	NO. 2 SUB-RADIATOR DUCT	*4	NO. 1 SUB-RADIATOR BRACKET
*5	NO. 1 SUB-RADIATOR HOSE	*6	NO. 6 SUB-RADIATOR HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
