Components [10/2020 - ]

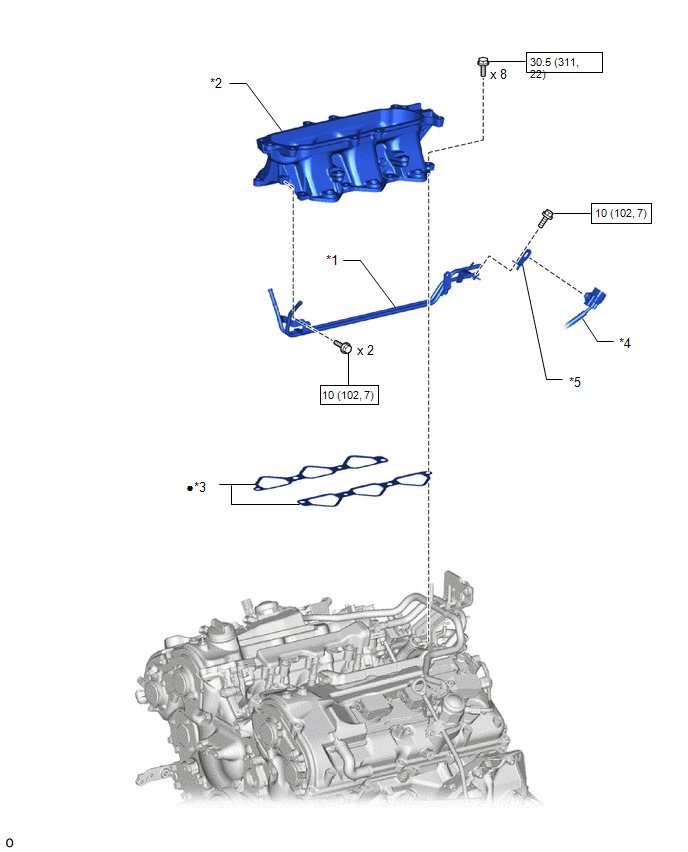

Fig 1: Intake Manifold Replacement Components With Torque Specifications [10/2020 - ]
GTY964732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL VAPOR FEED PIPE SUB-ASSEMBLY *2 INTAKE MANIFOLD
*3 NO. 1 INTAKE MANIFOLD TO HEAD GASKET *4 NO. 5 ENGINE WIRE
*5 WIRE HARNESS CLAMP BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
