Components [12/2017 - ]

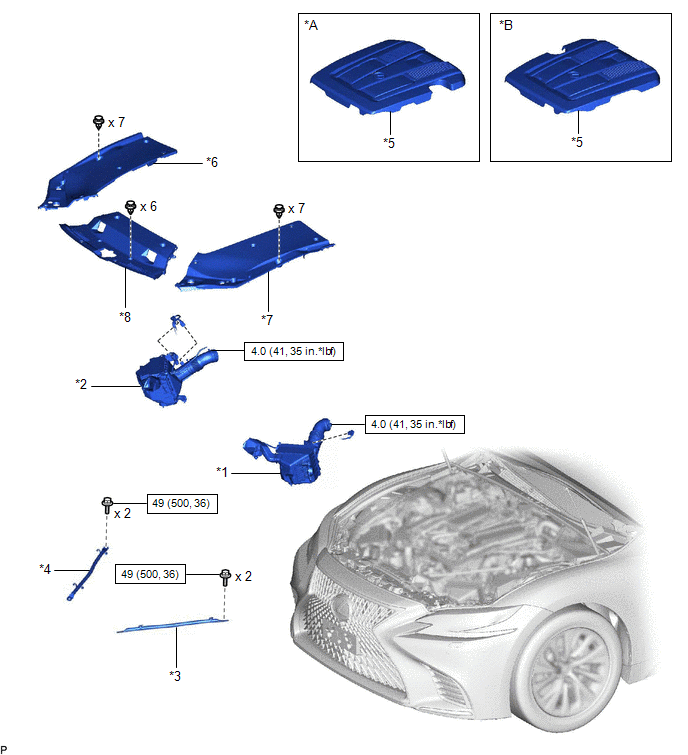

Fig 1: Intake Air Control Valve Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	*B	for AWD
*1	AIR CLEANER ASSEMBLY LH	*2	AIR CLEANER ASSEMBLY RH
*3	RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH	*4	RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
*5	V-BANK COVER SUB-ASSEMBLY	*6	RADIATOR COVER PLATE
*7	UPPER RADIATOR SUPPORT SEAL	*8	RADIATOR AIR DEFLECTOR
	N.m (kgf/cm, ft.lbf) : Specified torque	-	-

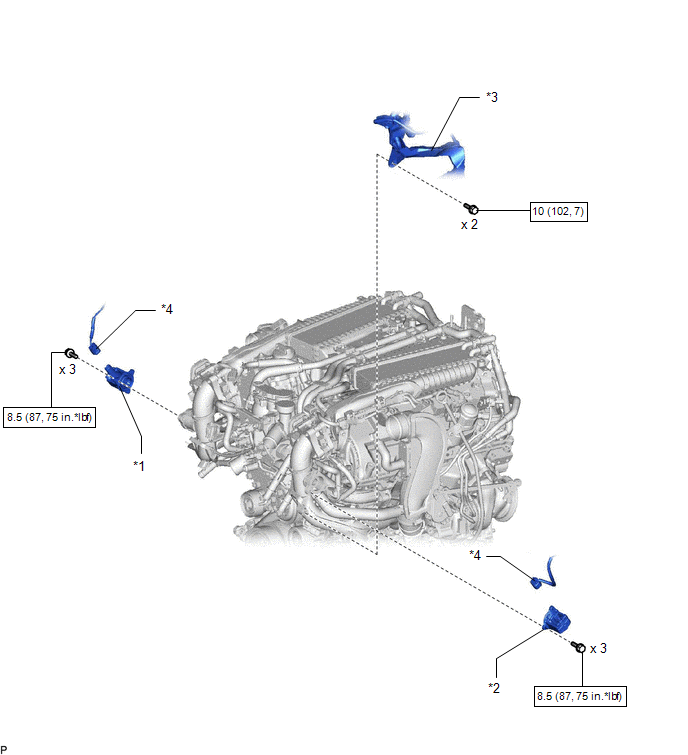

Fig 2: Intake Air Control Valve Replacement Components With Torque Specifications (2 Of 2)

*1	AIR BY-PASS VALVE ASSEMBLY (for Bank 1)	*2	AIR BY-PASS VALVE ASSEMBLY (for Bank 2)
*3	WIRE HARNESS	*4	CONNECTOR
	N.m (kgf/cm, ft.lbf) : Specified torque	-	-
