Components [12/2017 - 10/2020]

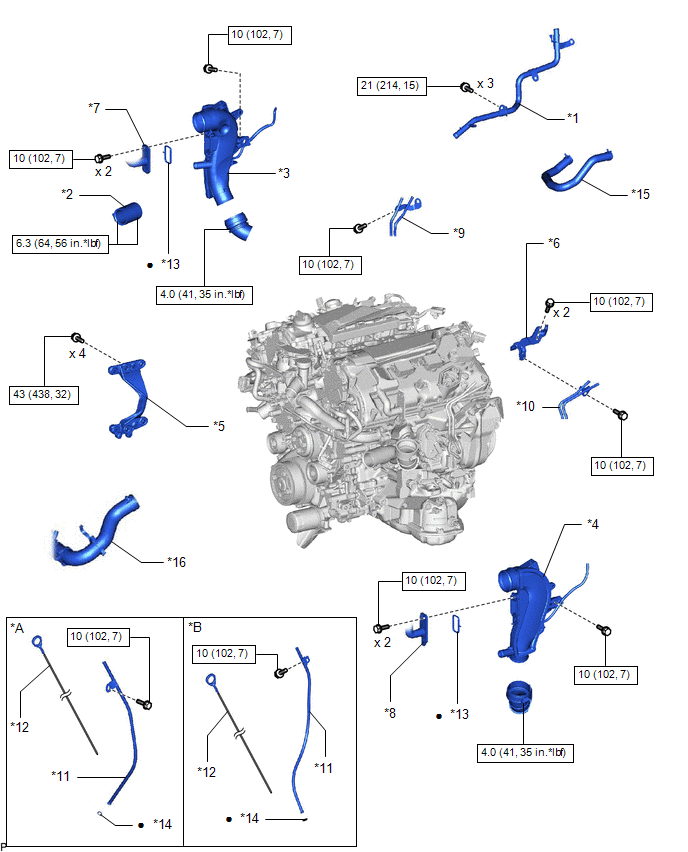

| *A | For 2WD | *B | For AWD |
| *1 | NO. 1 WATER BY-PASS PIPE | *2 | NO. 1 AIR HOSE |
| *3 | NO. 1 AIR INLET DUCT | *4 | NO. 2 AIR INLET DUCT |
| *5 | GENERATOR BRACKET SUB-ASSEMBLY | *6 | TURBO WATER PIPE STAY |
| *7 | NO. 1 PCV TUBE | *8 | NO. 2 PCV TUBE |
| *9 | NO. 1 TURBO WATER PIPE SUB-ASSEMBLY | *10 | NO. 2 TURBO WATER PIPE SUB-ASSEMBLY |
| *11 | ENGINE OIL LEVEL DIPSTICK GUIDE | *12 | ENGINE OIL LEVEL DIPSTICK |
| *13 | GASKET | *14 | O-RING |
| *15 | WATER HOSE | *16 | NO. 4 RADIATOR HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

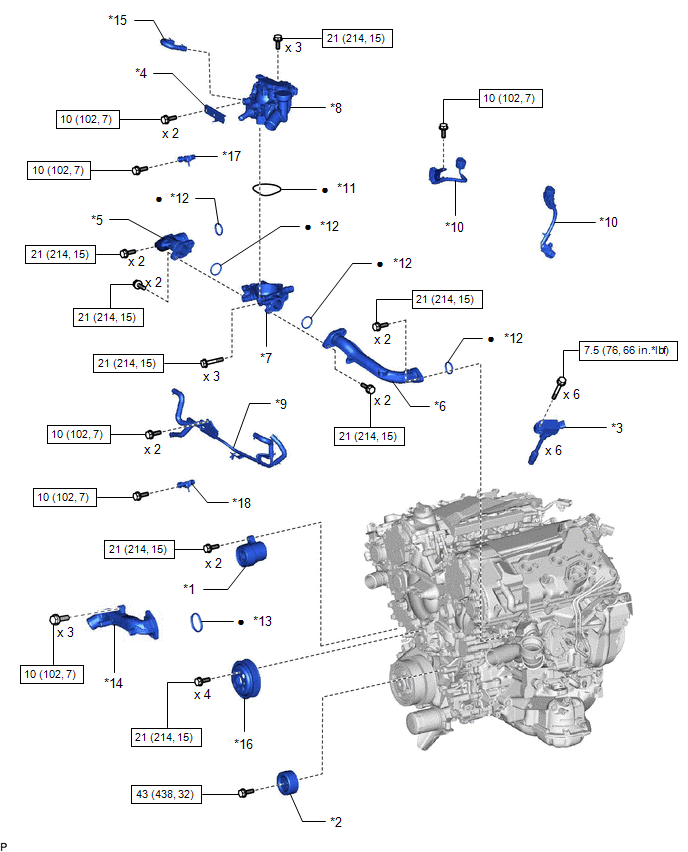

| *1 | V-RIBBED BELT TENSIONER ASSEMBLY | *2 | IDLER PULLEY SUB-ASSEMBLY |
| *3 | IGNITION COIL ASSEMBLY | *4 | INTAKE PIPE STAY |
| *5 | NO. 1 WATER OUTLET PIPE | *6 | NO. 2 WATER OUTLET PIPE |
| *7 | WATER OUTLET PIPE WATER BY-PASS JOINT | *8 | WATER CONTROL VALVE |
| *9 | NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY | *10 | NO. 11 ENGINE WIRE |
| *11 | WATER OUTLET HOUSING GASKET | *12 | GASKET |
| *13 | WATER INLET PIPE GASKET | *14 | WATER INLET ASSEMBLY |
| *15 | NO. 3 WATER BY-PASS HOSE | *16 | WATER PUMP PULLEY |
| *17 | NO. 1 TURBO PRESSURE SENSOR (for Bank 1) | *18 | NO. 1 TURBO PRESSURE SENSOR (for Bank 2) |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

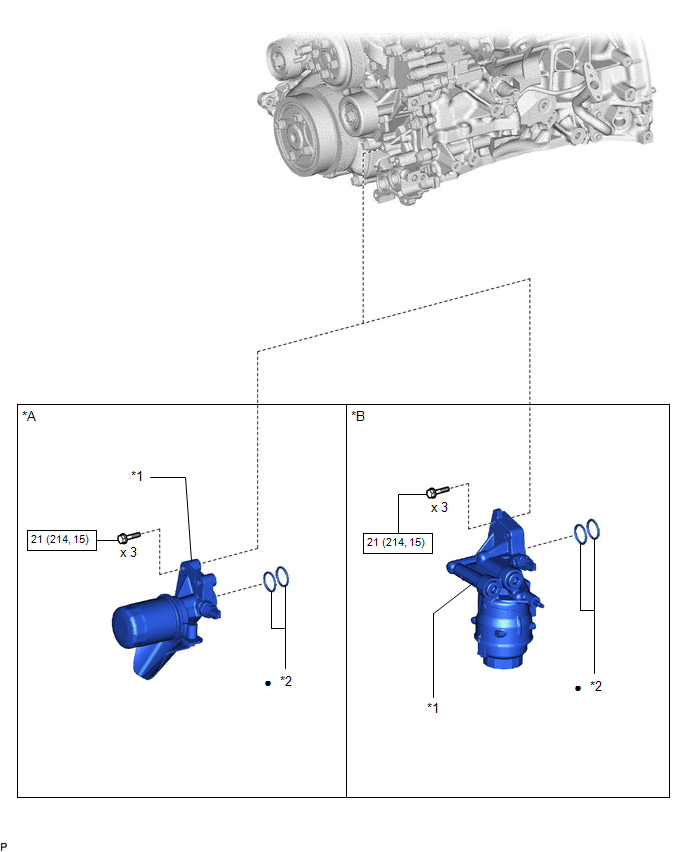

| *A | For 2WD | *B | For AWD |
| *1 | OIL FILTER BRACKET SUB-ASSEMBLY | *2 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| *1 | NO. 2 ENGINE COVER RH | *2 | VVT SENSOR (for Intake Side of Bank 1) |
| *3 | VVT SENSOR (for Exhaust Side of Bank 1) | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY RH |
| *5 | SPARK PLUG | *6 | SPARK PLUG TUBE GASKET |
| *7 | OIL FILLER CAP ASSEMBLY | *8 | NO. 1 CYLINDER HEAD COVER GASKET RH |
| *9 | NO. 2 CYLINDER HEAD COVER GASKET RH | *10 | NO. 1 INTERCOOLER AIR GUIDE |
| *11 | CAMSHAFT BEARING CAP OIL HOLE GASKET RH | *12 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Engine oil | * | Precoated part |
| *1 | NO. 2 ENGINE COVER LH | *2 | VVT SENSOR (for Intake Side of Bank 2) |
| *3 | VVT SENSOR (for Exhaust Side of Bank 2) | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *5 | SPARK PLUG | *6 | SPARK PLUG TUBE GASKET |
| *7 | NO. 1 CYLINDER HEAD COVER GASKET LH | *8 | NO. 2 CYLINDER HEAD COVER GASKET LH |
| *9 | NO. 1 INTERCOOLER AIR GUIDE | *10 | CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
| *11 | O-RING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Engine oil | * | Precoated part |

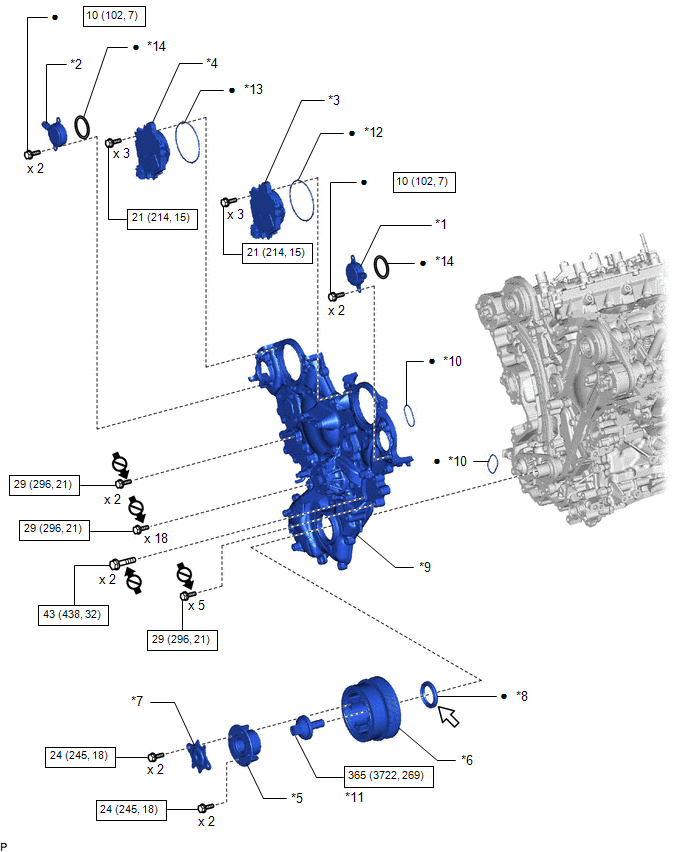

| *1 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY LH | *2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY RH |
| *3 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH | *4 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH |
| *5 | CRANKSHAFT DAMPER SUB-ASSEMBLY | *6 | CRANKSHAFT PULLEY |
| *7 | CRANKSHAFT PULLEY COVER | *8 | TIMING CHAIN CASE OIL SEAL |
| *9 | TIMING CHAIN OR BELT COVER SUB-ASSEMBLY | *10 | WATER PUMP GASKET |
| *11 | CRANKSHAFT PULLEY SET BOLT | *12 | O-RING LH |
| *13 | O-RING RH | *14 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | MP grease | |
| Do not apply lubricants to the threads | - | - |

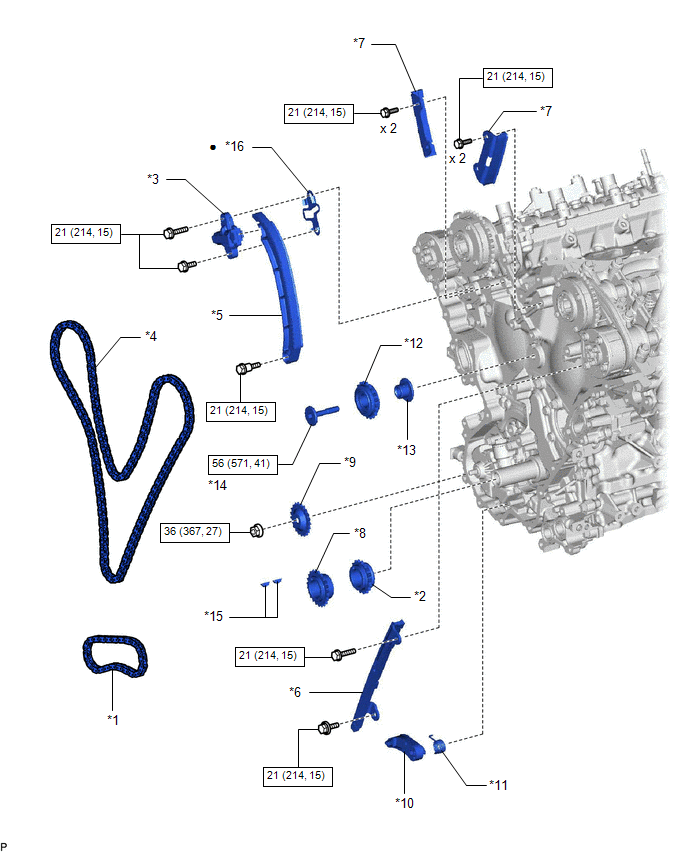

| *1 | OIL PUMP DRIVE CHAIN SUB-ASSEMBLY | *2 | CRANKSHAFT TIMING GEAR OR SPROCKET |
| *3 | NO. 1 CHAIN TENSIONER ASSEMBLY | *4 | NO. 1 CHAIN SUB-ASSEMBLY |
| *5 | CHAIN TENSIONER SLIPPER | *6 | NO. 1 CHAIN VIBRATION DAMPER |
| *7 | NO. 2 CHAIN VIBRATION DAMPER | *8 | OIL PUMP DRIVE SPROCKET |
| *9 | OIL PUMP DRIVE SHAFT SPROCKET | *10 | CHAIN TENSIONER PLATE |
| *11 | CHAIN DAMPER SPRING | *12 | IDLE SPROCKET ASSEMBLY |
| *13 | NO. 1 IDLE GEAR SHAFT | *14 | NO. 2 IDLE GEAR SHAFT |
| *15 | CRANKSHAFT TIMING GEAR KEY | *16 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

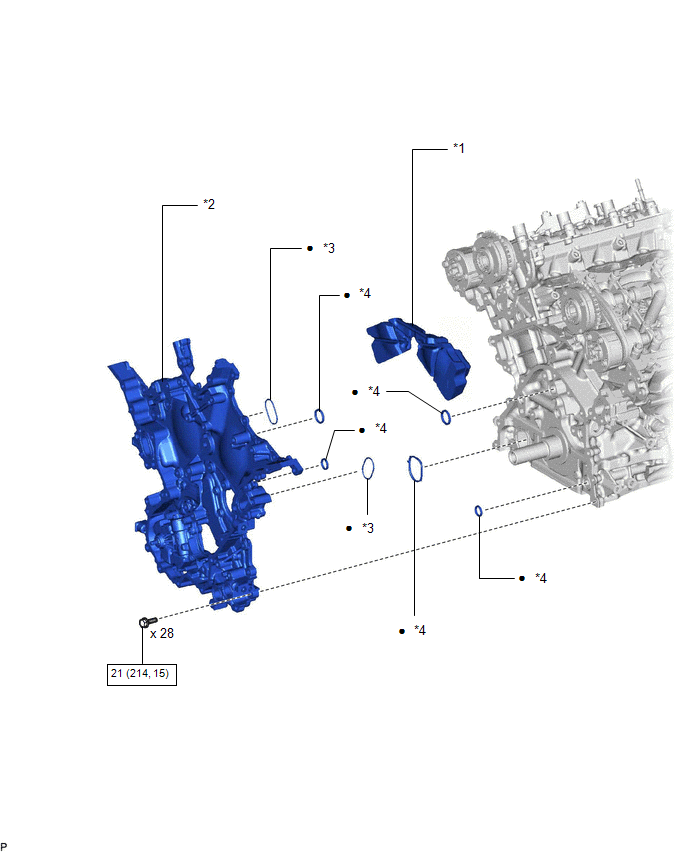

| *1 | NO. 6 ENGINE COVER | *2 | TIMING CHAIN COVER ASSEMBLY |
| *3 | WATER PUMP GASKET | *4 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
