Components [12/2017 - ]

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications (1 Of 2)
GTY786500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For 2WD *B For AWD
*1 NO. 1 ENGINE UNDER COVER ASSEMBLY *2 NO. 2 ENGINE UNDER COVER ASSEMBLY
*3 STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY *4 FRONT SUSPENSION MEMBER BRACE
*5 TRANSMISSION UNDER COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
* Precoated part - -

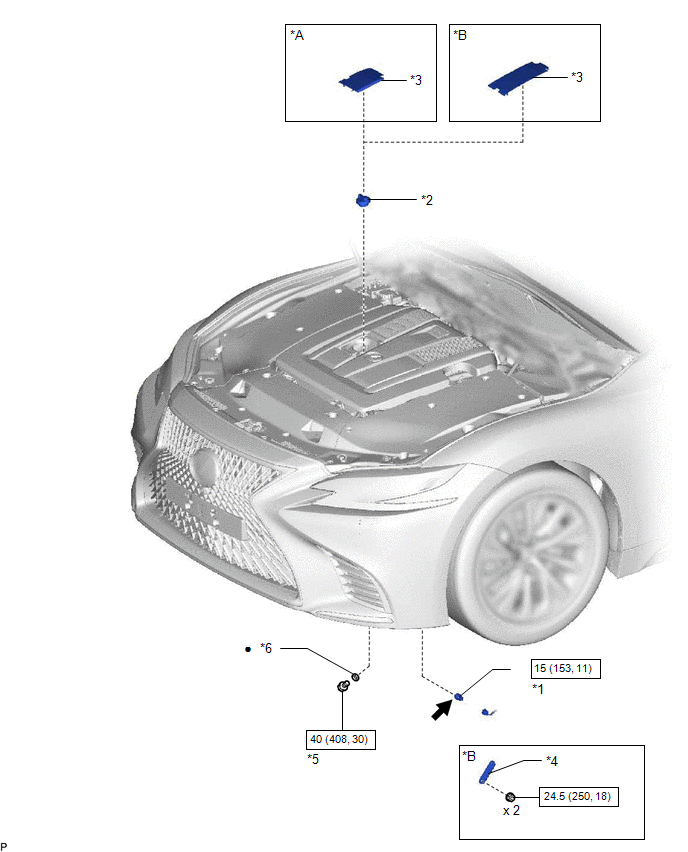

Fig 2: Oil Pressure Switch Replacement Components With Torque Specifications (2 Of 2)
GTY781913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For 2WD *B For AWD
*1 ENGINE OIL PRESSURE SWITCH ASSEMBLY *2 OIL FILLER CAP ASSEMBLY
*3 OIL FILLER LID *4 OIL FILTER BRACKET
*5 OIL PAND DRAIN PLUG *6 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1344 * Precoated part
