Installation [12/2017 - ]: Procedure

  1. INSTALL NO. 2 TURBO PRESSURE SENSOR (for Bank 1)

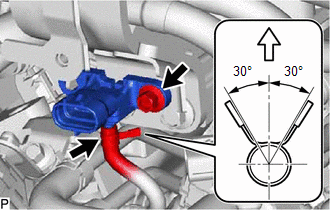

    1. Connect the vacuum hose to the No. 2 turbo pressure sensor, and slide the clip to secure the hose.
      GTY806287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front

      HINT:

      Make sure the direction of the clip is as shown in the illustration.

    2. Install the No. 2 turbo pressure sensor with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the No. 2 turbo pressure sensor connector.
  2. INSTALL NO. 2 TURBO PRESSURE SENSOR (for Bank 2)

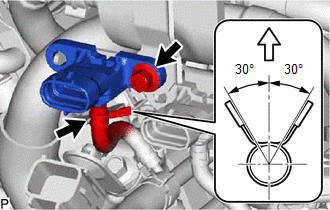

    1. Connect the vacuum hose to the No. 2 turbo pressure sensor, and slide the clip to secure the hose.
      GTY826364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front

      HINT:

      Make sure the direction of the clip is as shown in the illustration.

    2. Install the No. 2 turbo pressure sensor with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the No. 2 turbo pressure sensor connector.
  3. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - ]
