Components [12/2017 - ]

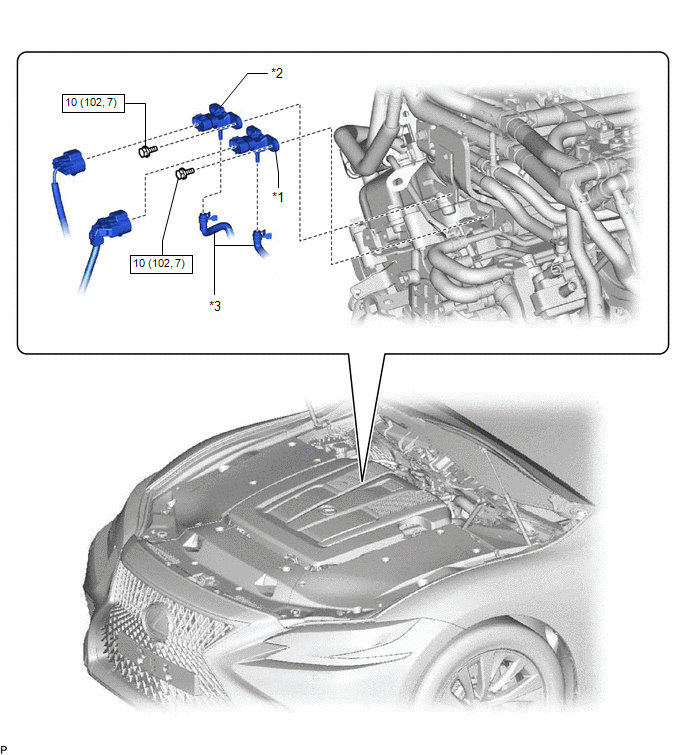

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications
GTY816078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 TURBO PRESSURE SENSOR (for Bank 1) *2 NO. 2 TURBO PRESSURE SENSOR (for Bank 2)
*3 VACUUM HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
