Components [12/2017 - ]

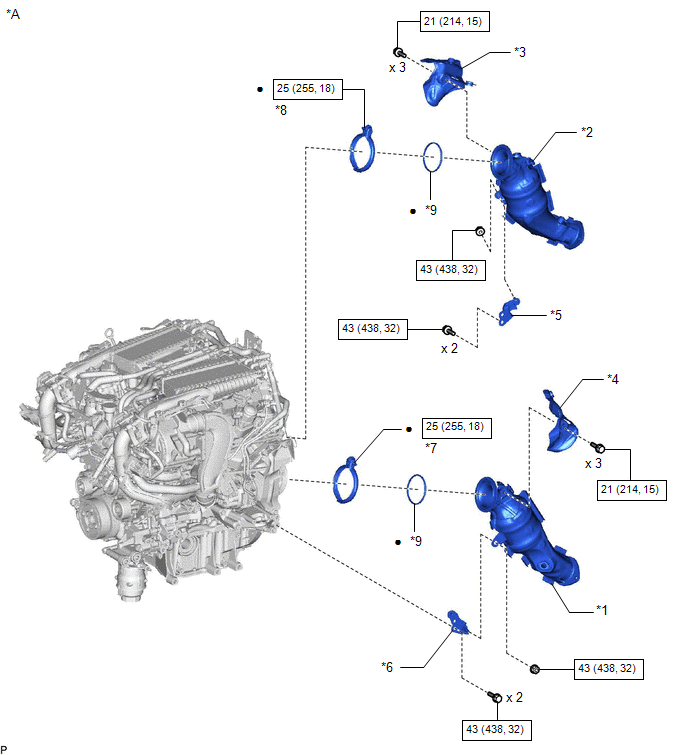

Fig 1: Monolithic Converter Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	-	-
*1	CONVERTER ASSEMBLY LH	*2	CONVERTER ASSEMBLY RH
*3	NO. 2 TURBO INSULATOR	*4	NO. 4 TURBO INSULATOR
*5	MANIFOLD STAY	*6	NO. 2 MANIFOLD STAY
*7	EXHAUST PIPE CLAMP LH	*8	EXHAUST PIPE CLAMP RH
*9	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

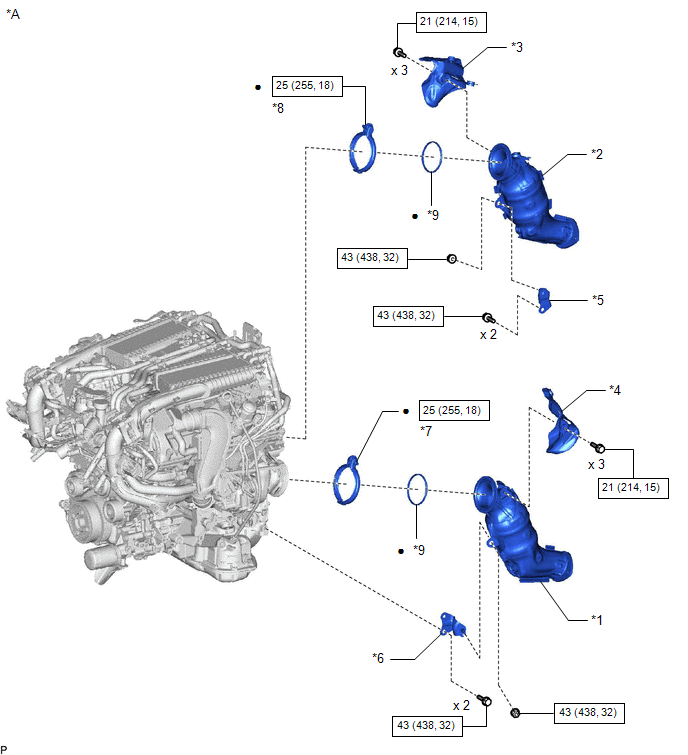

Fig 2: Monolithic Converter Replacement Components With Torque Specifications (2 Of 2)

*A	for AWD	-	-
*1	CONVERTER ASSEMBLY LH	*2	CONVERTER ASSEMBLY RH
*3	NO. 2 TURBO INSULATOR	*4	NO. 4 TURBO INSULATOR
*5	MANIFOLD STAY	*6	NO. 2 MANIFOLD STAY
*7	EXHAUST PIPE CLAMP LH	*8	EXHAUST PIPE CLAMP RH
*9	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
