Installation [10/2023 - ]: Procedure
- INSTALL STEERING SENSOR

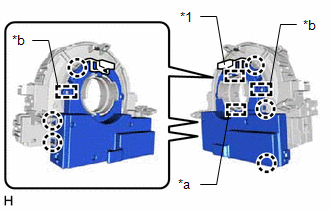

- Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
*1 Lock Pin *a Guide *b Pin NOTE:- Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
- Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.
- The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.

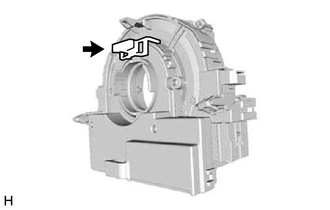

- Remove the lock pin from the steering sensor.
- Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
- INSPECT SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 13
- INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 14
- ADJUST SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 7
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL LOWER NO. 3 STEERING WHEEL COVER
Refer to PROCEDURE - Step 2
- INSTALL LOWER NO. 2 STEERING WHEEL COVER
Refer to PROCEDURE - Step 3
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- UPDATE ECU SECURITY KEY
Refer to UPDATE ECU SECURITY KEY [10/2023 - ]
- INSPECT HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 7
- PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [10/2023 - ]
- CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2023 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to CUSTOMIZE PARAMETERS [12/2017 - ]
- INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2023 - ]
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
