Components [10/2023 - ]

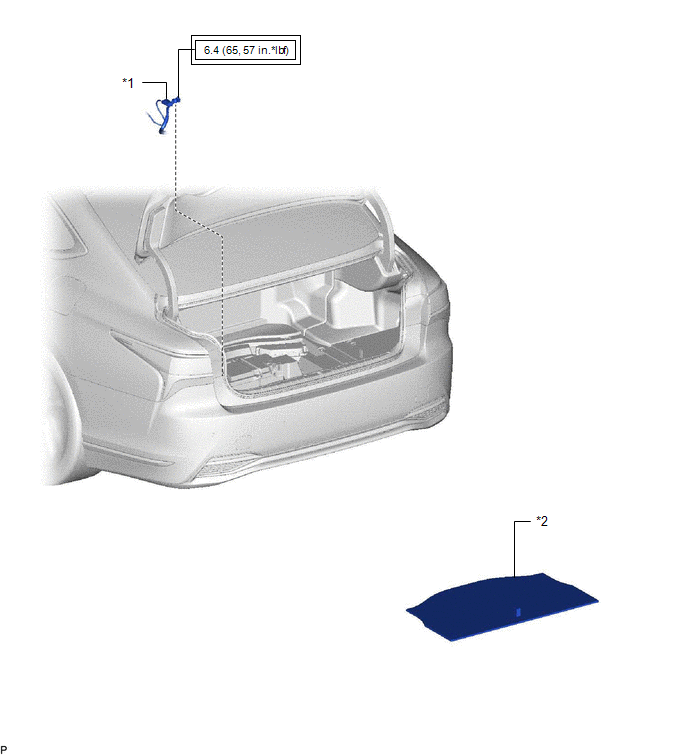

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications [10/2023 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

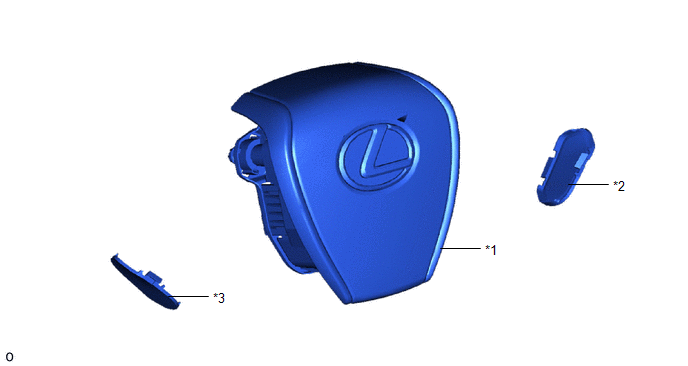

Fig 2: Steering Angle Sensor Replacement Components [10/2023 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HORN BUTTON ASSEMBLY	*2	LOWER NO. 2 STEERING WHEEL COVER
*3	LOWER NO. 3 STEERING WHEEL COVER	-	-

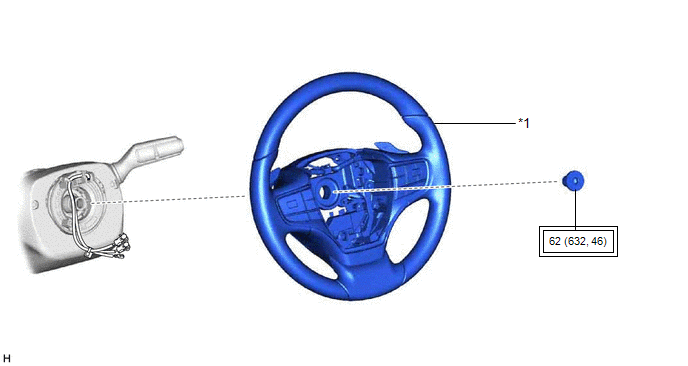

Fig 3: Steering Angle Sensor Replacement Components With Torque Specifications [10/2023 - ] (3 Of 4)

*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

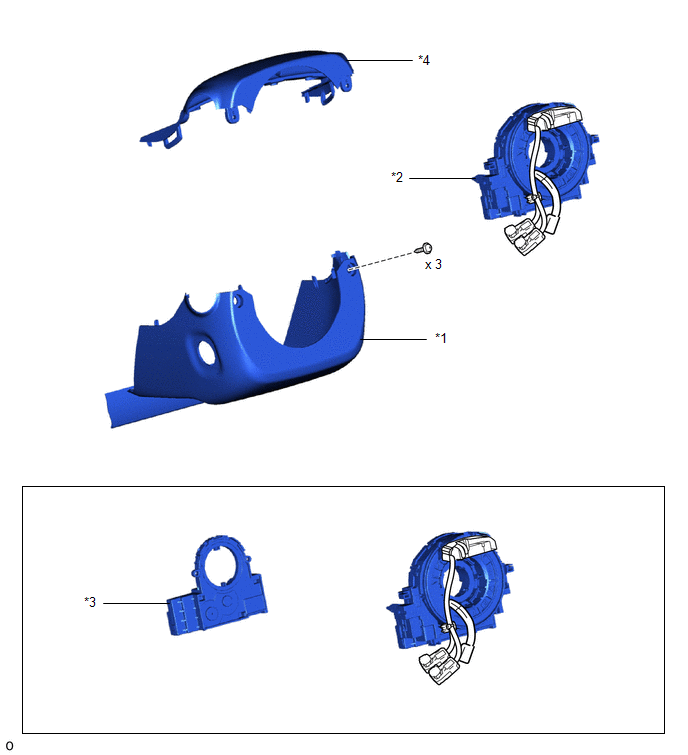

Fig 4: Steering Angle Sensor Replacement Components [10/2023 - ] (4 Of 4)

*1	LOWER STEERING COLUMN COVER	*2	SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
*3	STEERING SENSOR	*4	UPPER STEERING COLUMN COVER
