Installation [12/2017 - 10/2020]: Procedure

  1. INSTALL MULTI-DISPLAY ASSEMBLY

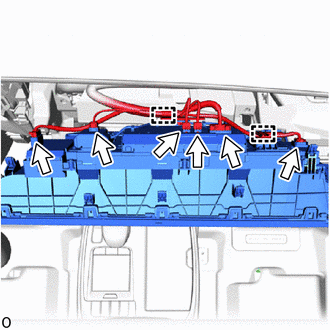

    1. Connect each connectors and attach the clamp.
      GTY791333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

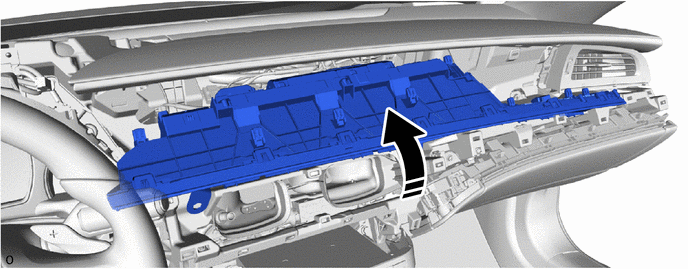

    2. Move the multi-display assembly as shown in the illustration
      GTY833344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -

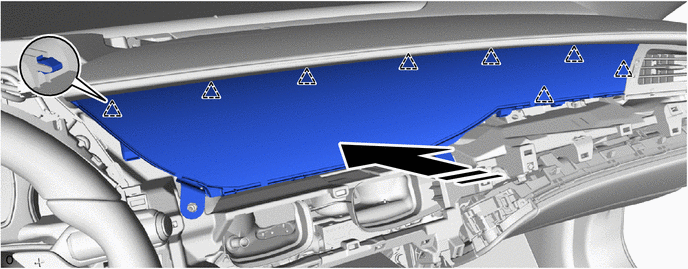

    3. Attach the clip to install the multi-display assembly.
      GTY836010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      NOTE:

      Do not subject the multi-display assembly to excessive force or damage it.

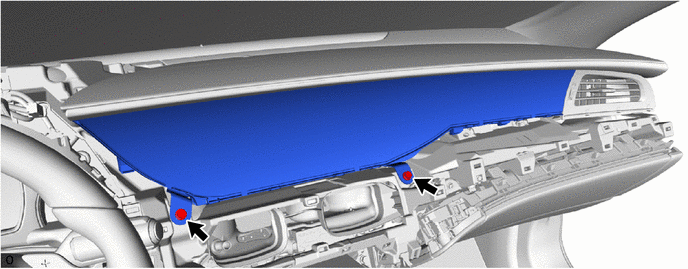

    4. Install the 2 bolts.
      GTY830825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 19

  3. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 23

  6. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  7. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 8

  8. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9
