Removal [01/2017 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 14 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 14 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 14 [05/2023 - ]

  2. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 15 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 15 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]

  3. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 16 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 16 [05/2023 - ]

  4. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 3 [01/2017 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  5. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    See step  23 [01/2017 - 04/2020], or see step  23 [04/2020 - 05/2023], or see step  23 [05/2023 - ]

  6. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

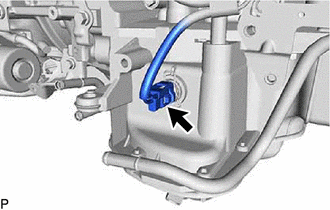

      GTY829757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip from the engine oil level sensor.

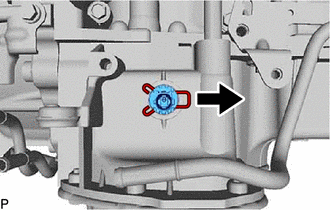

      GTY786448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

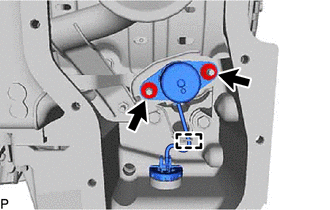

    3. GTY784196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the clamp and remove the 2 nuts and engine oil level sensor.

  7. REMOVE OIL LEVEL SENSOR BRACKET
    1. Remove the oil level sensor bracket.

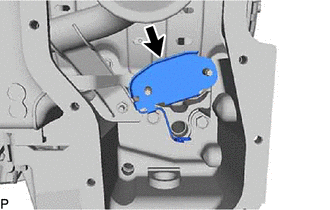

      GTY784201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
