Components [01/2017 - ]

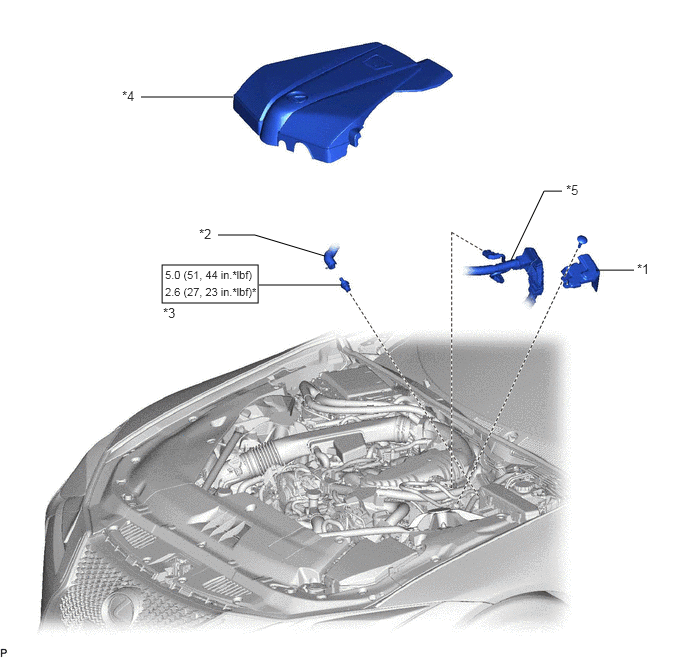

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY782357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 PCV HOSE
*3 PCV VALVE *4 V-BANK COVER SUB-ASSEMBLY
*5 ENGINE WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with ball joint lock nut wrench
