Installation [01/2017 - ]: Procedure

1. Install a new gasket and the fuel tank EVAP tube support plate to the fuel tank protector plate.
2. Install the fuel tank protector plate to the fuel tank assembly with the 4 screws.

   Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

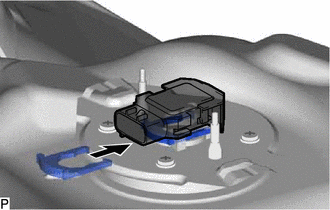

3. Set the fuel tank pressure sensor to the fuel tank EVAP tube support plate.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Check that there are no scratches or foreign objects on the connecting parts.

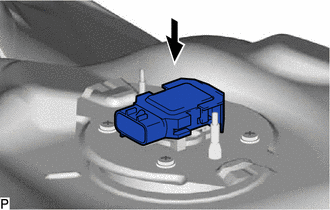

4. Install the fuel tank pressure sensor with the tube joint clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

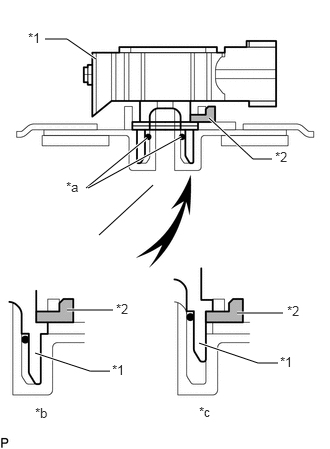

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Pressure Sensor
   *2	Tube Joint Clip
   *a	O-Ring
   *b	CORRECT
   *c	INCORRECT

   • Check that the tube joint clip is inserted securely.
   • After installing the tube joint clip, check that the fuel tank pressure sensor cannot be pulled off.
   • Be careful not to damage the tube joint clip. If the tube joint clip is damaged, replace it.
5. Connect the connector to the fuel tank pressure sensor.

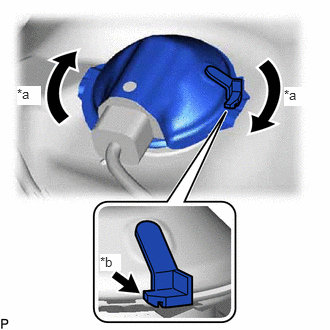

1. Set the No. 3 fuel tank protector to the fuel tank protector plate.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Lock

2. Turn the No. 3 fuel tank protector and install the No. 3 fuel tank protector to the fuel tank protector plate securely. Then secure the lock.

Refer to INSTALLATION [01/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
