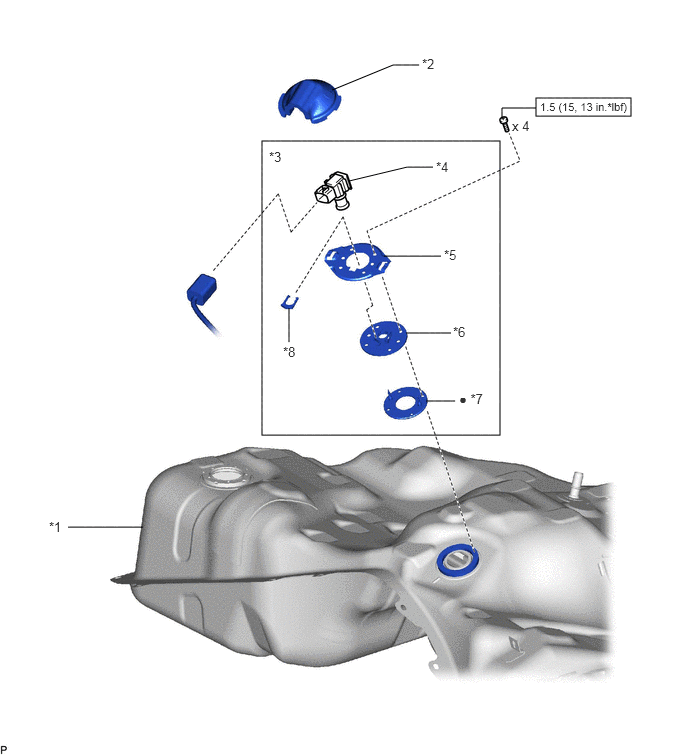

Components [01/2017 - ]
| *1 | FUEL TANK ASSEMBLY | *2 | NO. 3 FUEL TANK PROTECTOR |
| *3 | REAR FUEL TANK SIDE PLATE SUB-ASSEMBLY | *4 | FUEL TANK PRESSURE SENSOR |
| *5 | FUEL TANK PROTECTOR PLATE | *6 | FUEL TANK EVAP TUBE SUPPORT PLATE |
| *7 | GASKET | *8 | TUBE JOINT CLIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
