Components [01/2017 - ]

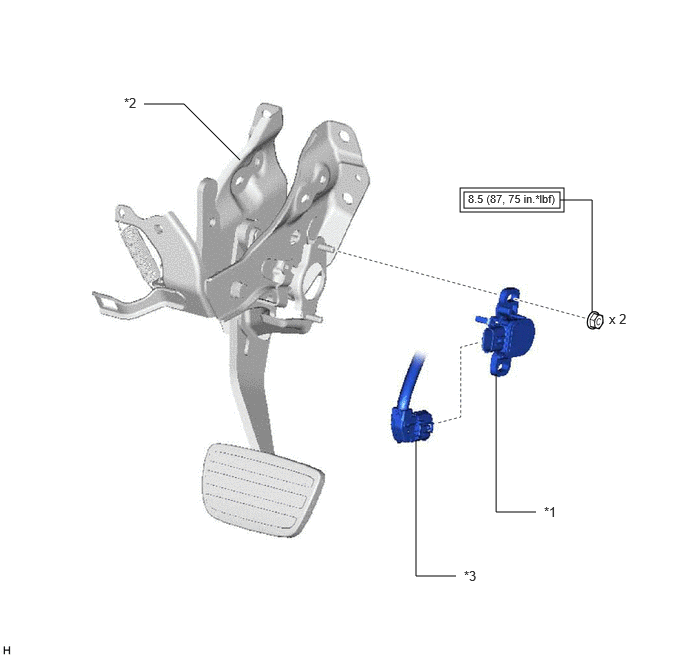

Fig 1: Brake Pedal Stroke Sensor Replacement Components With Torque Specifications
GTY1172520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE PEDAL STROKE SENSOR ASSEMBLY *2 BRAKE PEDAL SUPPORT ASSEMBLY
*3 CONNECTOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) - -
