Components [01/2017 - ]

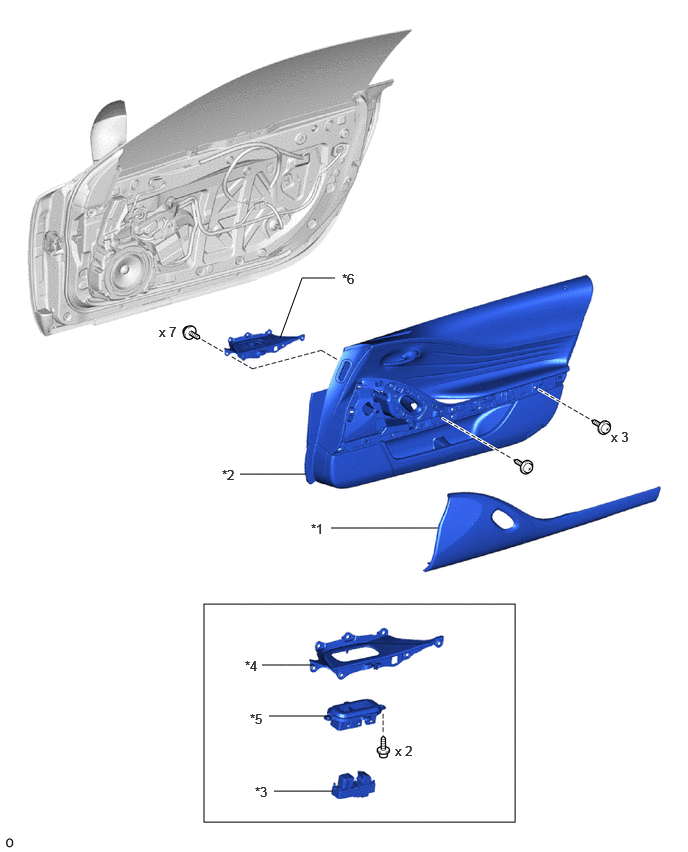

Fig 1: Front Passenger Side Power Window Switch Replacement Components
GTY785495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR ASSIST GRIP ASSEMBLY RH *2 FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH
*3 POWER WINDOW REGULATOR SWITCH ASSEMBLY *4 NO. 1 SWITCH BASE
*5 NO. 2 SWITCH BASE *6 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH THE NO. 1 SWITCH BASE
