Parts Location [01/2017 - 05/2023]: Illustration

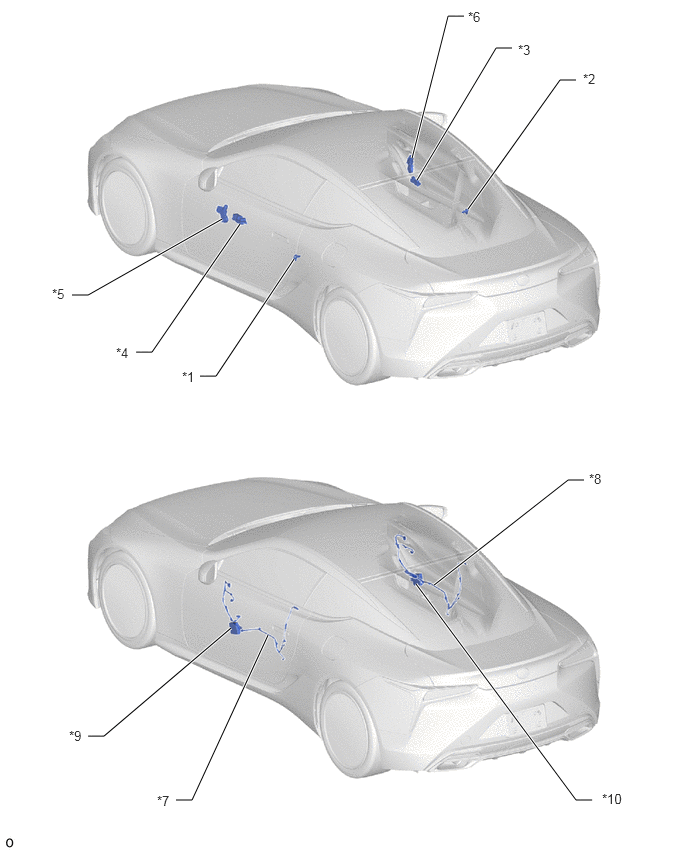

Fig 1: Power Window Control System Replacement Components (1 Of 2) [01/2017 - 05/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COURTESY LIGHT SWITCH LH	*2	COURTESY LIGHT SWITCH RH
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*5	POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*6	POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
*7	FRONT DOOR WIRE LH	*8	FRONT DOOR WIRE RH
*9	FRONT MULTIPLEX NETWORK DOOR ECU LH	*10	FRONT MULTIPLEX NETWORK DOOR ECU RH

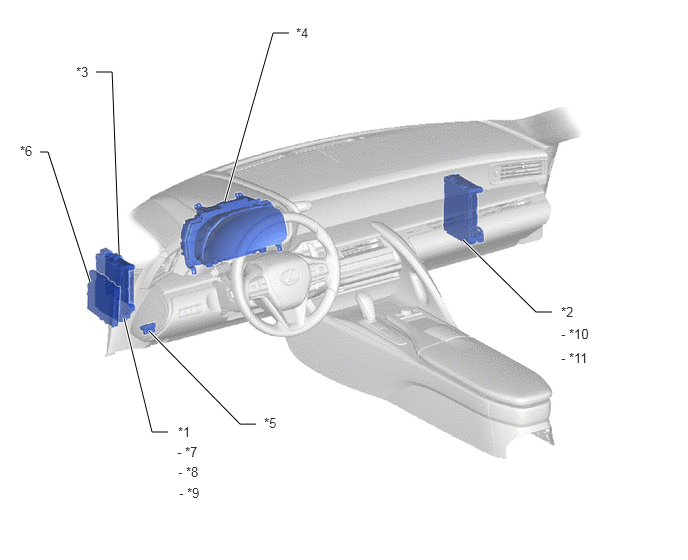

Fig 1: Power Window Control System Replacement Components (2 Of 2) [01/2017 - 05/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DRIVER SIDE JUNCTION BLOCK ASSEMBLY	*2	PASSENGER SIDE JUNCTION BLOCK ASSEMBLY
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	COMBINATION METER ASSEMBLY
*5	DLC3	*6	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*7	DOOR D NO. 1 FUSE	*8	DOOR D NO. 2 FUSE
*9	IG1 D NO. 1 FUSE	*10	DOOR P NO. 1 FUSE
*11	IG1 P NO. 2 FUSE	-	-
